How to Install a Wall-Mounted Faucet: Rough-In, Waterproofing, and Leak Testing

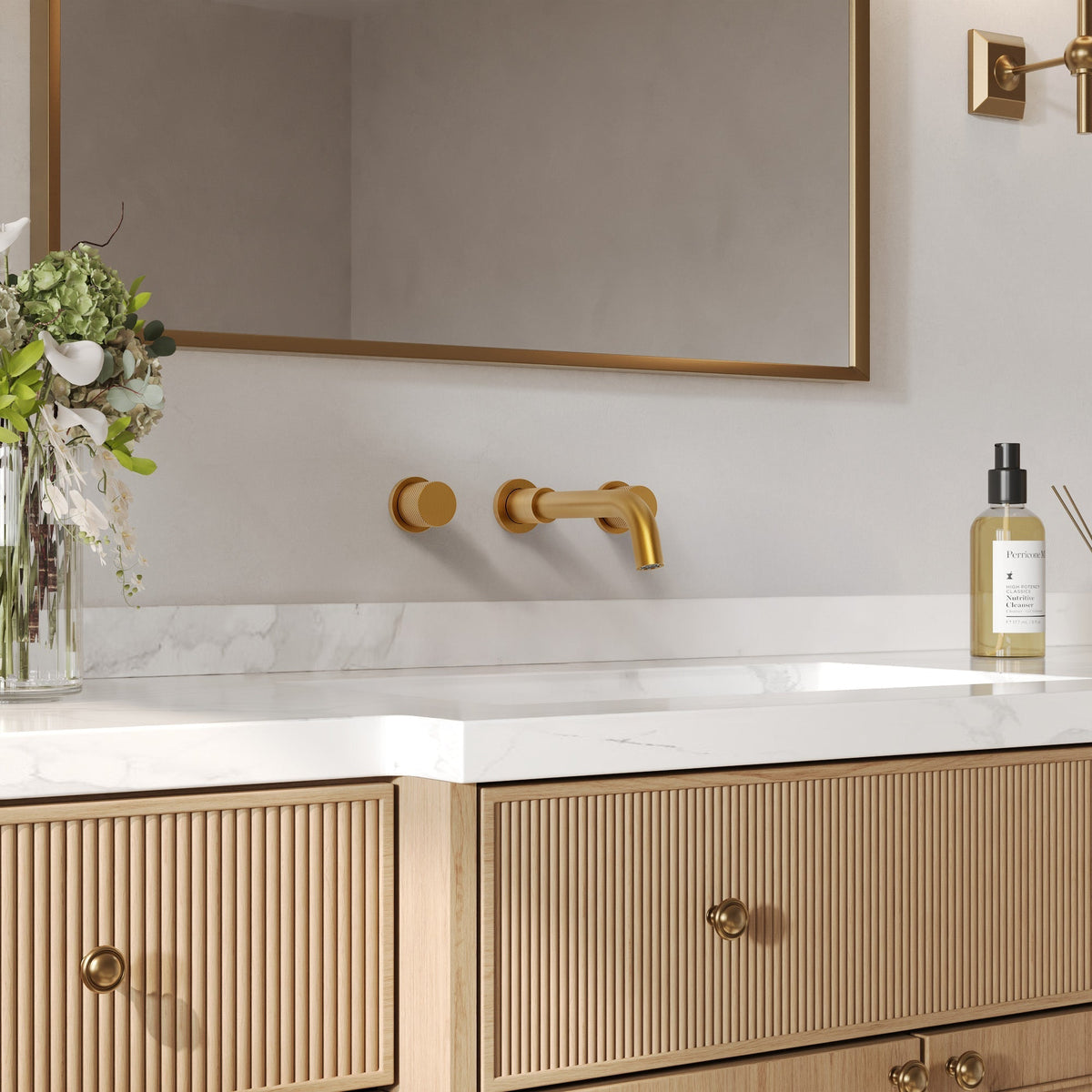

A wall-mounted faucet mounts to plumbing inside the wall instead of the sink deck. The visible installation is simple, but the rough-in must be accurate because the valve depth, centerline, wall finish thickness, and spout position are difficult to change after tile or drywall is closed.

This project is easiest during new construction or a bathroom remodel when the wall is open. A retrofit is possible, but it may require drywall removal, waterproofing repair, tile replacement, and professional plumbing work.

Before Starting: Confirm the Project Is Suitable

A wall-mounted faucet is practical when the wall has enough depth for the rough-in valve, the plumbing can be routed through an interior wall, and the sink position is already known.

Confirm:

1. The sink, countertop, and vanity are on site or have final dimensions.
2. The wall is thick enough for the valve, supply lines, and fittings.
3. The plumbing can run through an interior wall where possible.
4. The faucet spout reach and height fit the sink.
5. The rough-in valve and trim are compatible.
6. The wall finish thickness is known before setting valve depth.
7. A service path will remain available for the cartridge and valve.

Exterior walls increase the risk of freezing and may be restricted by local code. Avoid running supply lines through an exterior wall unless the design is reviewed and insulated for the local climate.

Determine the Correct Faucet Height and Centerline

The faucet must be centered over the sink and placed high enough for comfortable use without splashing.

For a vessel sink, measure upward from the sink rim. For an undermount sink, measure from the countertop surface. A common starting point is with the spout outlet about 3 to 5 inches above the highest sink point, but the faucet and sink manufacturer’s instructions control.

1. Set the vanity or sink in its final position.
2. Find the center of the sink basin.
3. Draw a vertical centerline on the wall.
4. Mark the required faucet height.
5. Confirm spout reach and handle clearance.
6. Include the final backer board, tile, mortar, and wall finish in the valve-depth calculation.

Take photos and record final measurements before opening the wall.

Important Valve-Depth Measurement

The rough-in valve must sit at the depth specified by the faucet manufacturer. If it is too deep, the trim may not attach correctly. If it is too shallow, the trim may not sit flush.

Measure from the finished wall surface, not the exposed framing:

• Backer board or drywall
• Waterproofing membrane
• Mortar or adhesive
• Tile or wall finish
• Optional trim gasket

An extension kit may solve a small depth error, but it is not a substitute for accurate planning.

Tools and Materials

Prepare:

1. Tape measure and pencil
2. 4-foot level
3. Stud finder
4. Drill and suitable bits
5. Hole saw for the valve and supply openings
6. Adjustable wrench and basin wrench
7. Pipe cutter or appropriate tubing tool
8. PEX or copper fittings compatible with the plumbing system
9. Approved thread sealant or sealing method
10. Pressure-test equipment
11. Bucket and towels
12. Wall repair materials
13. Waterproofing and tile materials when required

Confirm which tools and joining methods are approved for the plumbing material in the home.

Step 1: Shut Off and Drain the Water

1. Close the main water shutoff.
2. Open a faucet on the lowest level to drain the system.
3. Open the fixture nearest the work area.
4. Confirm that water has stopped before cutting or opening a pipe.
5. Protect the floor and vanity from residual water.

For electrical work associated with touchless or digital faucets, turn off power at the breaker and verify it is off.

Step 2: Open the Wall and Inspect the Cavity

1. Mark the planned opening before cutting.
2. Remove the wall finish carefully.
3. Check for framing, wiring, ducts, and existing pipes.
4. Do not cut structural framing to fit the valve.
5. Confirm that the valve can be mounted securely to blocking or framing.

If the wall contains unexpected wiring or structural conflicts, stop and revise the layout with a qualified professional.

Step 3: Mark and Install Blocking

Wall-mounted faucets require a solid, stable connection. Add blocking between framing members when the valve cannot fasten directly to a stud.

1. Position the blocking so the valve centerline is accurate.
2. Use materials and fasteners suitable for wet areas and structural loads.
3. Keep blocking square and flush.
4. Pre-drill as needed to prevent splitting.
5. Verify the valve orientation before final tightening.

Step 4: Install the Rough-In Valve

1. Dry-fit the rough-in valve and trim.
2. Confirm hot and cold inlet orientation.
3. Set the valve depth according to the finished-wall measurement.
4. Secure the valve body to the blocking.
5. Keep the valve level and centered on the sink.
6. Do not distort the valve body while tightening.

The rough-in must remain accessible or be designed with a replaceable cartridge accessible from the finished side.

Step 5: Connect the Supply Lines

1. Route hot and cold lines without sharp bends or rubbing.
2. Use approved fittings for the pipe material.
3. Support lines so they do not move or vibrate.
4. Keep connections accessible where possible.
5. Follow local requirements for insulation, freeze protection, and backflow prevention.
6. Do not create a hidden joint when a continuous line can be used.

Step 6: Pressure-Test Before Closing the Wall

Do not cover the rough-in until every connection has been tested.

1. Restore water pressure slowly.
2. Open and close the faucet controls.
3. Inspect every connection for moisture.
4. Dry the fittings and observe again.
5. Test hot and cold supply separately.
6. Confirm the valve body remains secure and correctly aligned.

If a connection leaks, shut off the water, repair the fitting, and repeat the test. Never close the wall with an active or unresolved leak.

Step 7: Finish and Waterproof the Wall

1. Repair the wall opening without covering service-access points.
2. Install backer board appropriate for the wet area.
3. Apply the waterproofing system according to the manufacturer.
4. Seal penetrations and changes of plane correctly.
5. Plan the tile layout around the spout, handles, and trim.
6. Cut openings accurately and protect their edges.

Waterproofing requirements depend on the wall location and local code. A wall-mounted faucet near a sink may not require the same treatment as a shower wall, but the sink area still needs protection from splash and leaks.

Step 8: Install the Trim

1. Confirm that the finished wall thickness matches the rough-in depth.
2. Install the trim gasket or seal according to the manual.
3. Attach the spout and handles without cross-threading.
4. Install escutcheons so they sit flat against the finished wall.
5. Tighten fasteners snugly without compressing or damaging seals.
6. Check that handles align and move smoothly.

If the trim does not seat correctly, stop and verify depth, extension requirements, and rough-in orientation. Do not force the parts.

Step 9: Flush the Lines and Perform the Final Leak Check

1. Remove the aerator if accessible.
2. Open the faucet and flush for about one minute.
3. Check for debris in the aerator screen.
4. Reinstall the aerator.
5. Run hot and cold water.
6. Inspect the spout base, handles, escutcheons, and wall for moisture.
7. Operate the faucet repeatedly and check again.
8. Confirm the cabinet or wall area below remains dry.

Troubleshooting Common Problems

Water appears around the trim

Check the O-rings, gasket, trim seating, and rough-in connections. If moisture appears behind the finished wall, shut off the water and open the wall as needed.

The trim does not sit flush

The rough-in valve depth may not match the finished wall thickness. Check the manufacturer’s extension options and rough-in dimensions.

The faucet is not centered

This usually means the centerline was marked incorrectly or the sink moved during rough-in. A major correction may require wall repair or valve relocation.

Handles are loose

Check the set screw and handle adapter. Tighten until snug without stripping the screw.

Water pressure is weak

Clean the aerator and check for debris in the cartridge or inlet screens. Confirm that shutoff valves are fully open.

Maintenance and Future Repair

Choose a faucet with a replaceable cartridge and available service parts. Most wall-mounted faucets are designed so the cartridge can be replaced from the finished side after removing the handle and trim.

Keep the model number, rough-in dimensions, installation photos, and receipt. If the valve body itself fails, repair may require opening the wall.

Frequently Asked Questions

What is the correct height for a wall-mounted faucet?

It depends on the sink and faucet. A common range places the spout outlet about 3 to 5 inches above the highest sink point, but the manufacturer’s instructions and actual spout reach determine the final position.

Can a wall-mounted faucet be installed on an exterior wall?

It is generally discouraged because supply lines may freeze. Local codes and insulation requirements must be checked, and an interior wall is usually safer.

Can I retrofit a wall-mounted faucet into a finished bathroom?

Yes, but it may require opening the wall, changing plumbing, repairing waterproofing, and replacing tile. A professional assessment is recommended.

How do I repair a dripping wall-mounted faucet?

Shut off the water and remove the handle and trim. Replace the cartridge or seals according to the manufacturer. If the rough-in body or a hidden connection is leaking, the wall may need to be opened.

Final Takeaway

The success of a wall-mounted faucet installation is determined before the wall is closed. Confirm the sink dimensions, set the valve depth from the finished wall, anchor the rough-in securely, pressure-test every connection, and align the trim carefully.

Keep service access and documentation for future cartridge replacement. If the project requires new in-wall plumbing, exterior-wall routing, or waterproofing repairs beyond your experience, stop and involve a licensed plumber.
