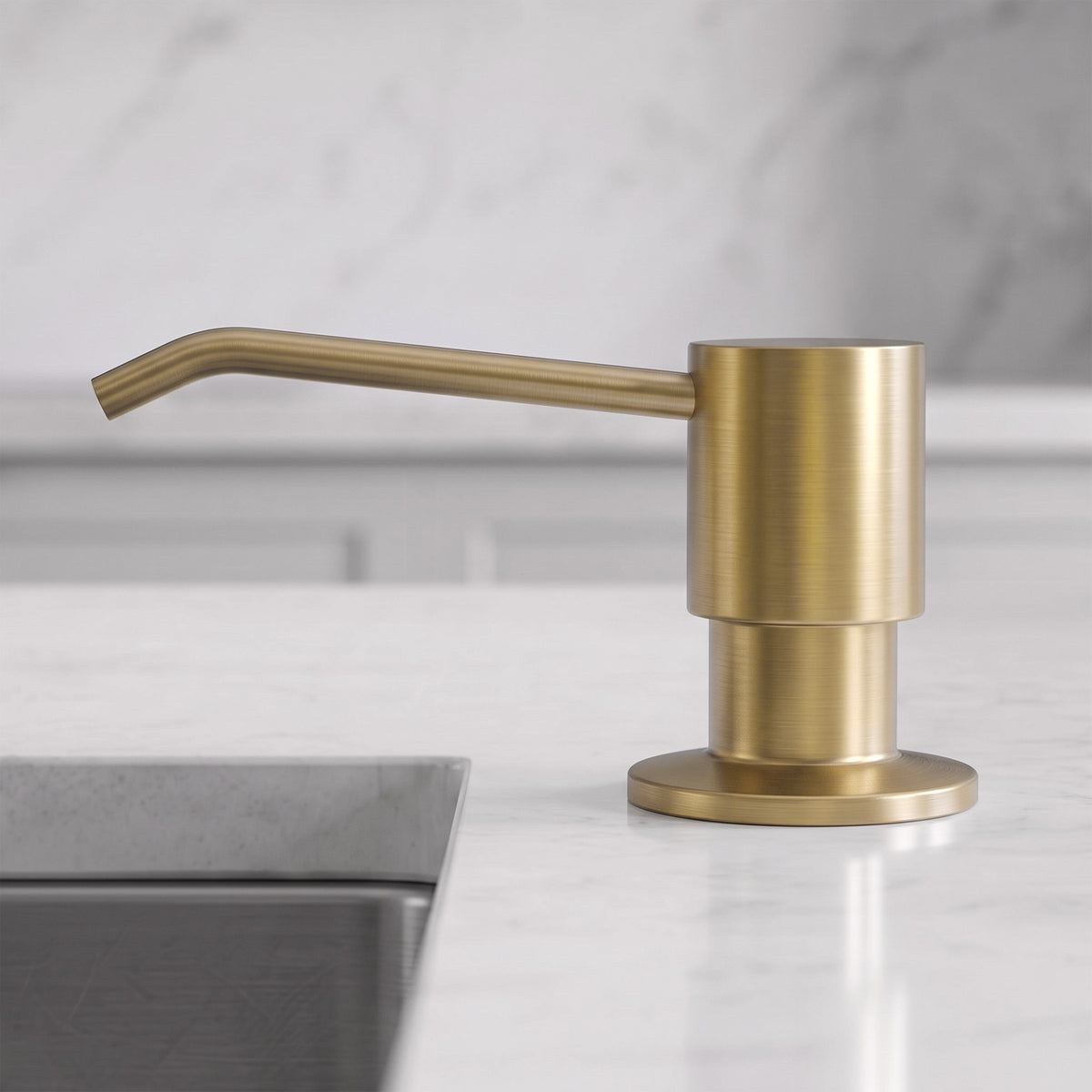

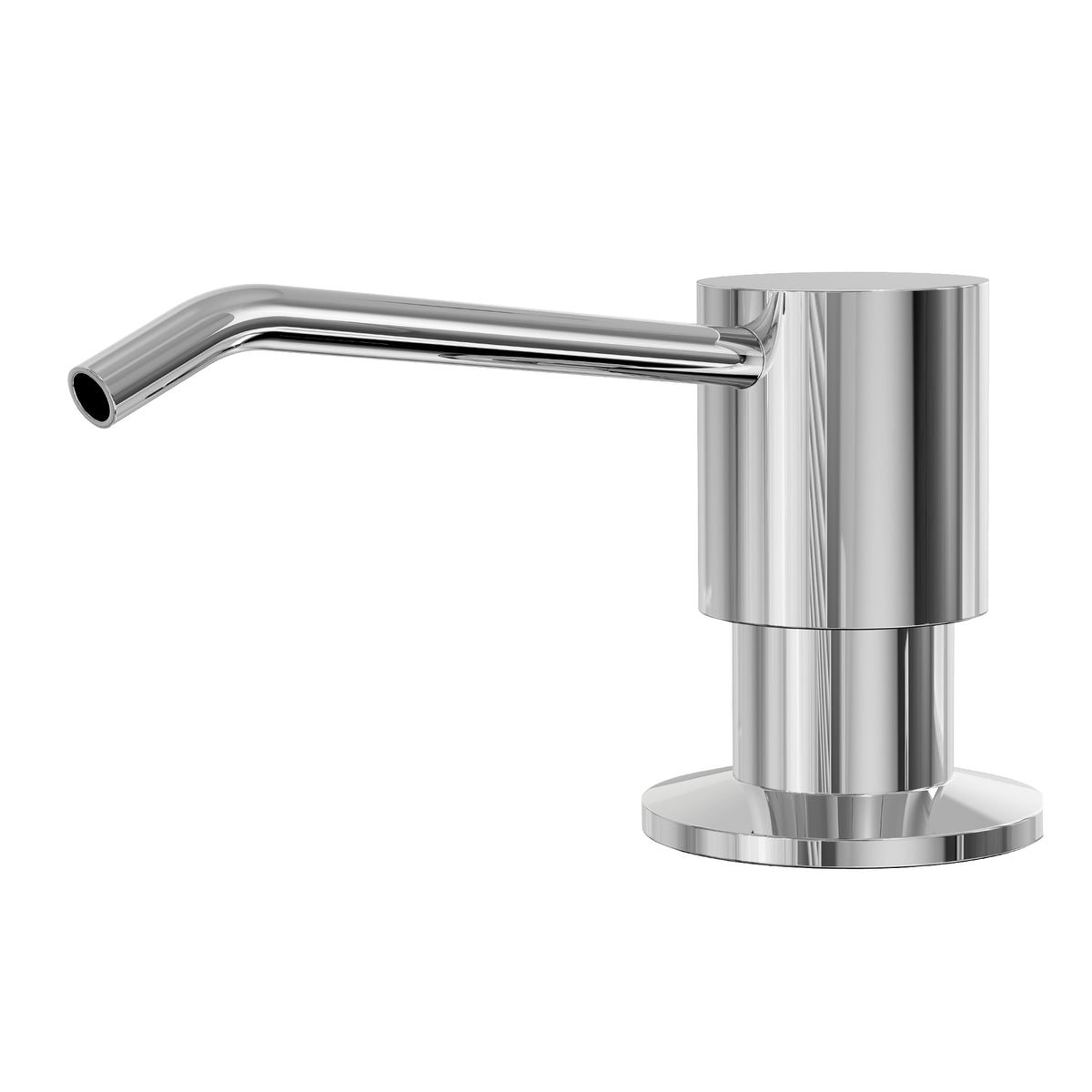

Deck-Mounted Liquid Soap Dispenser with Slim Pump Head and Straight Spout

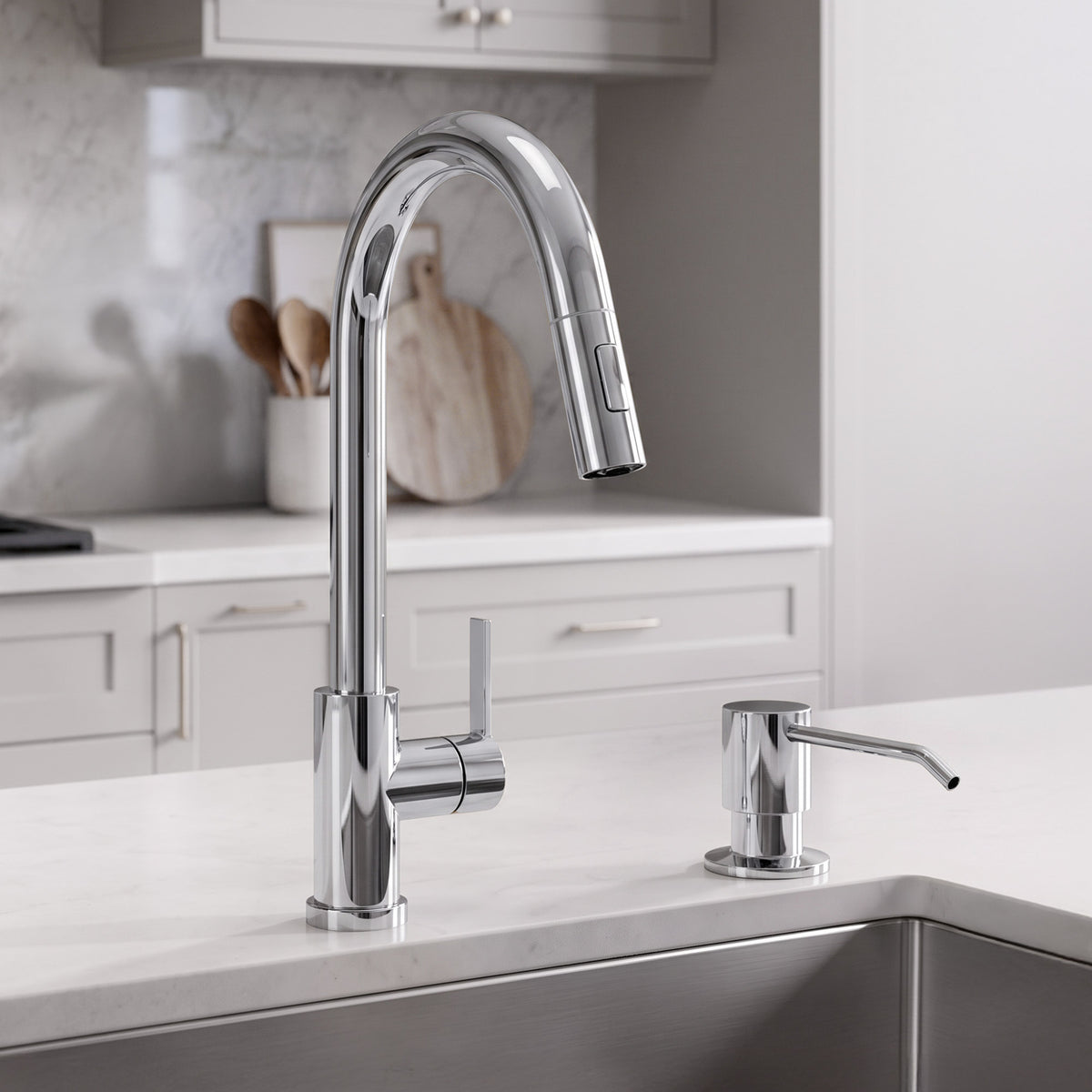

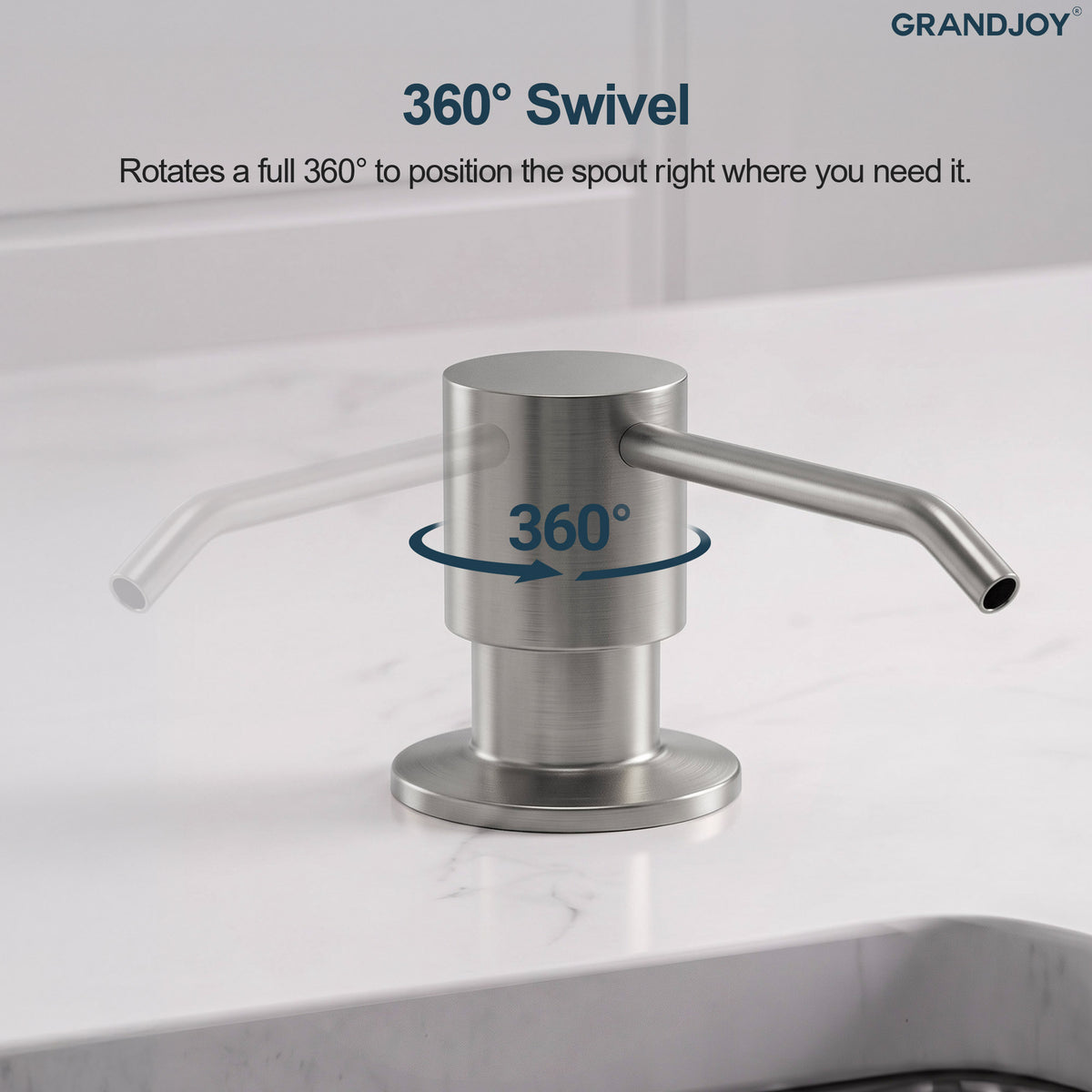

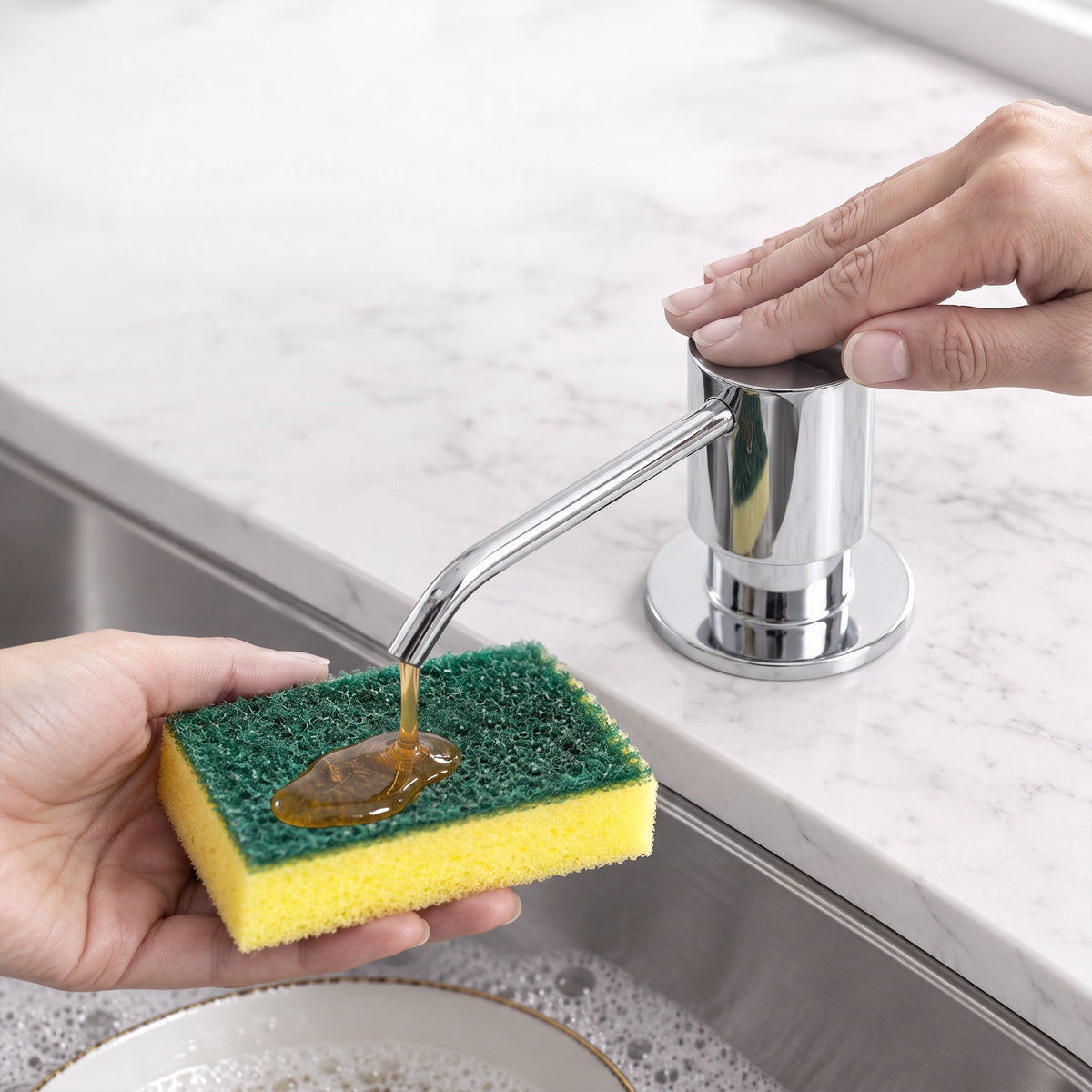

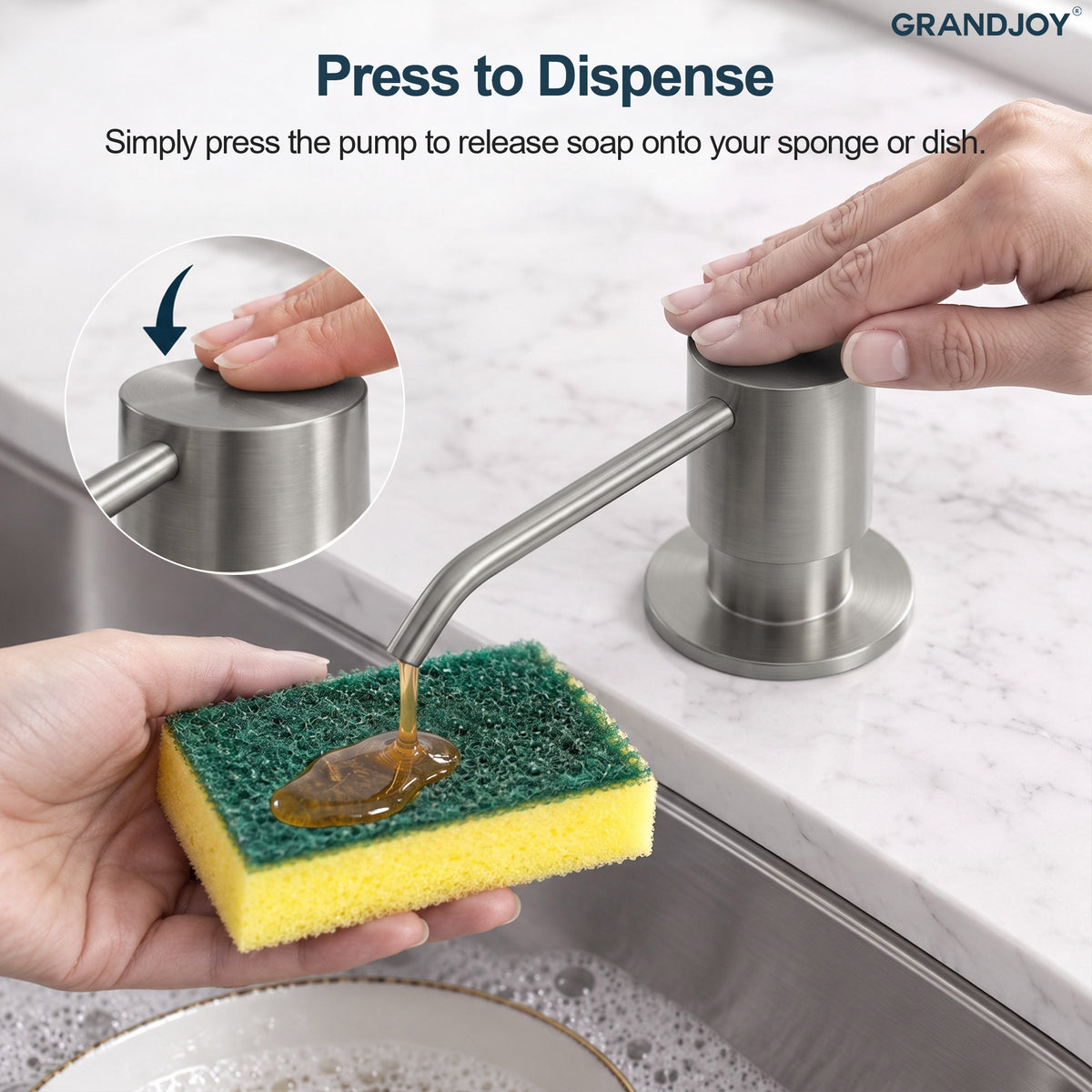

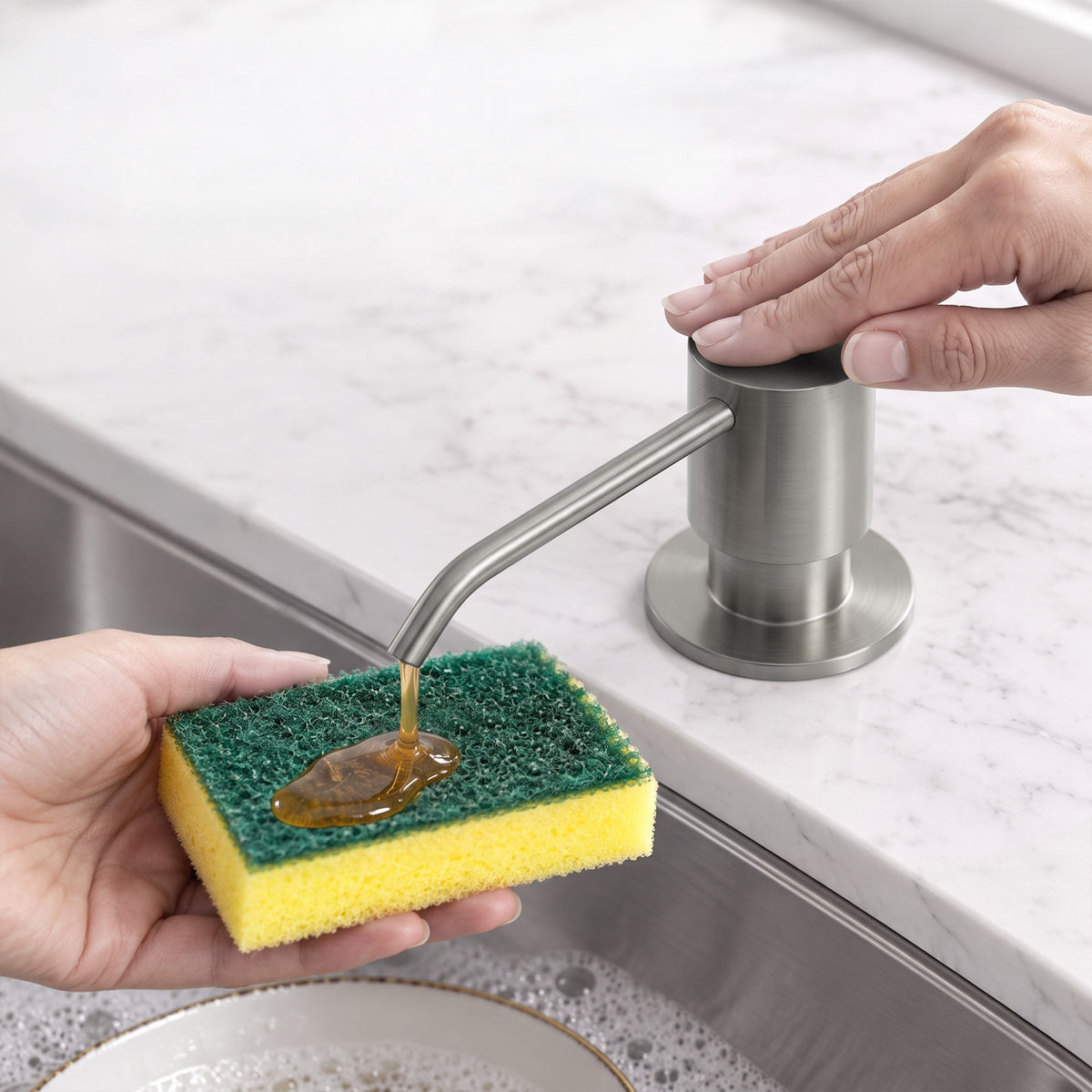

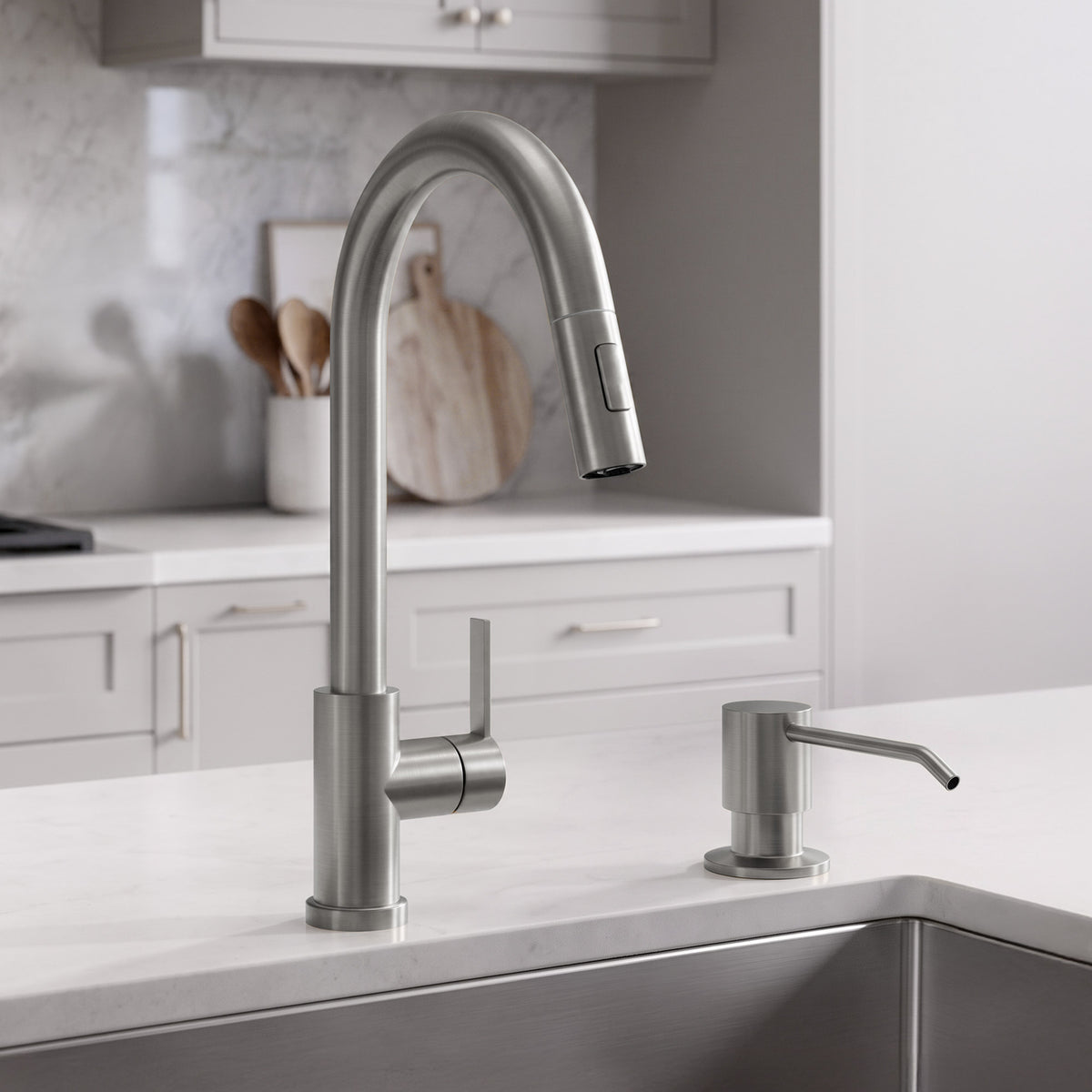

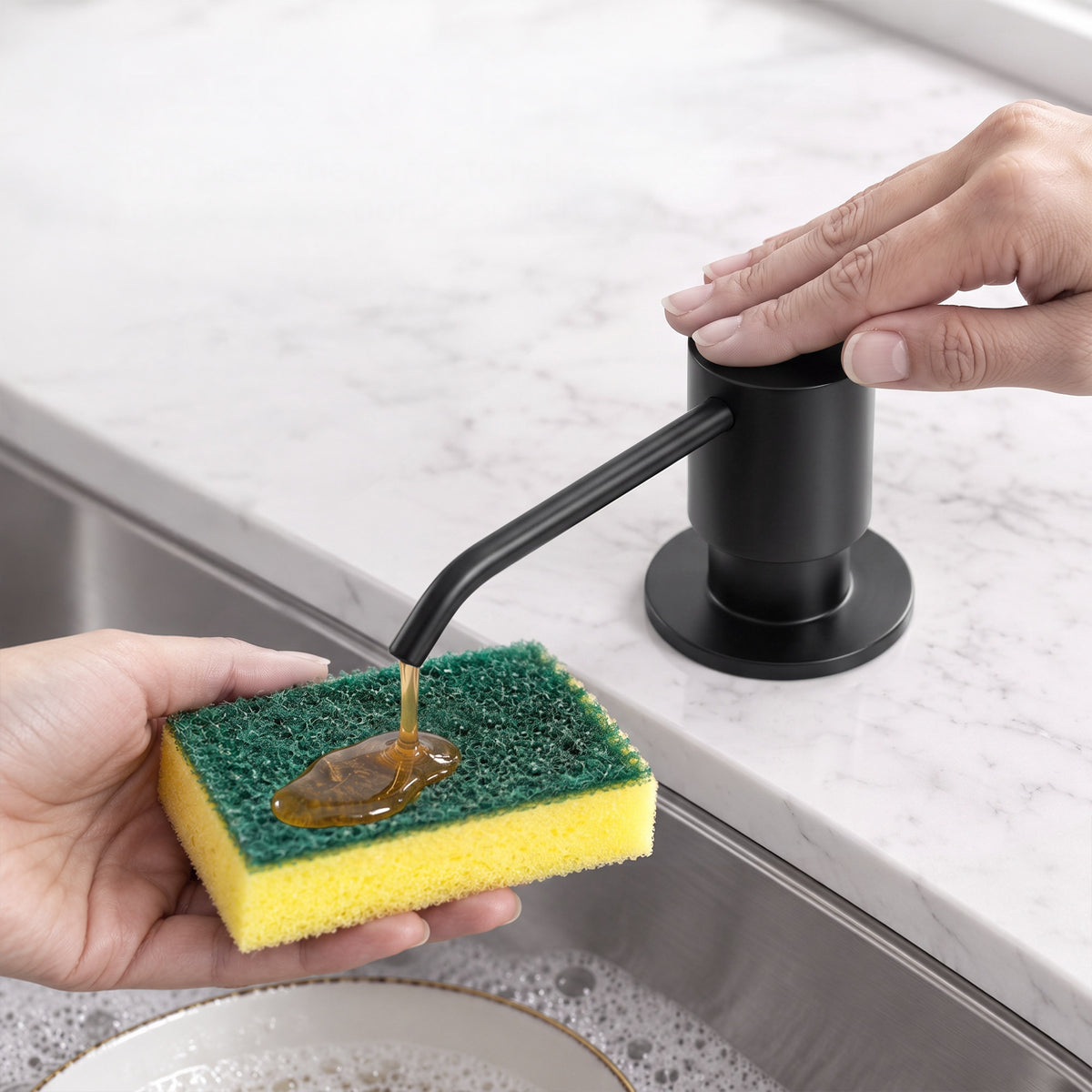

This slim deck-mounted liquid soap dispenser keeps a 500 mL bottle under the counter and leaves only a compact pump and straight spout above the deck. Dispensing is manual, and the spout turns a full 360 degrees to help direct soap over the basin. It suits kitchen and bathroom sinks in residential settings.

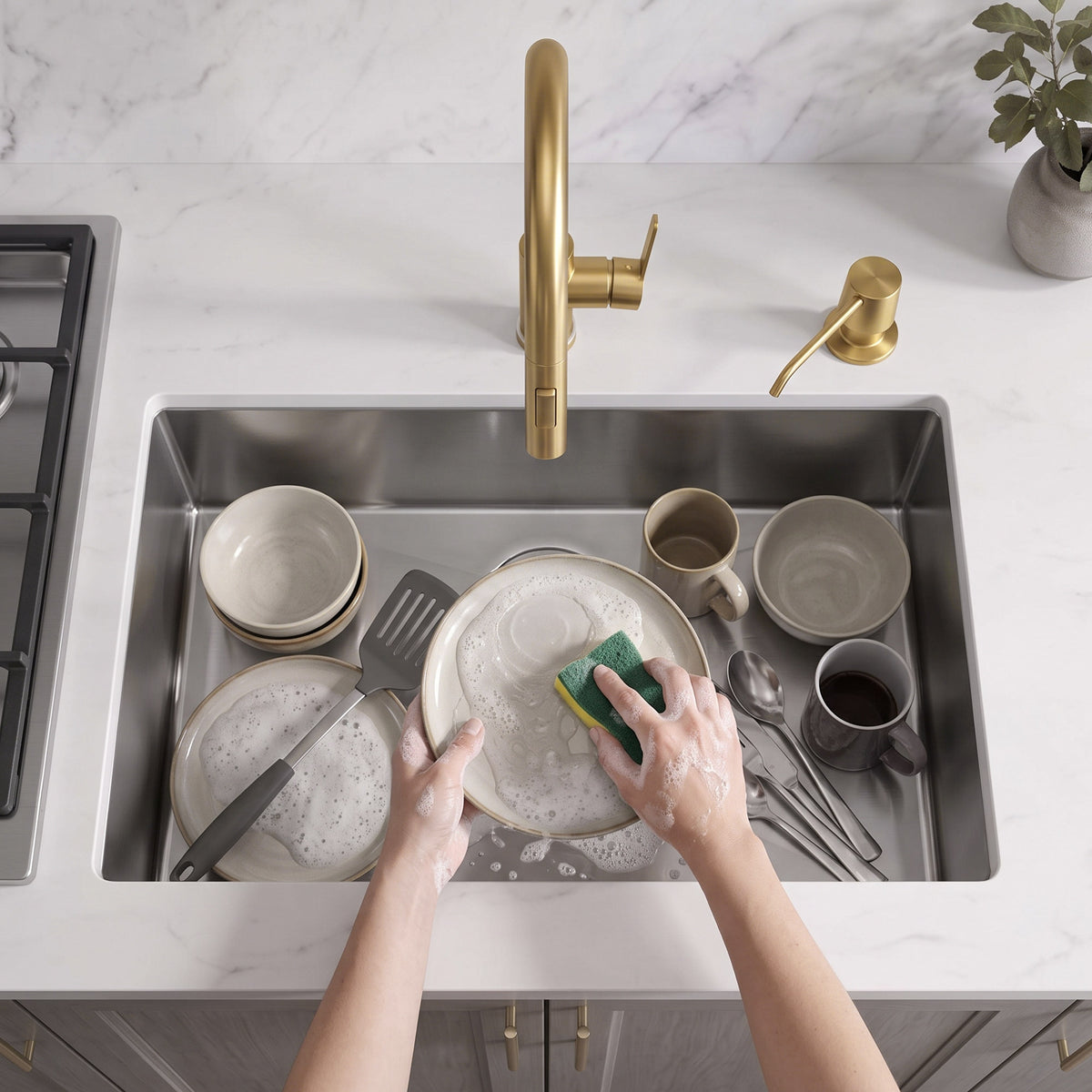

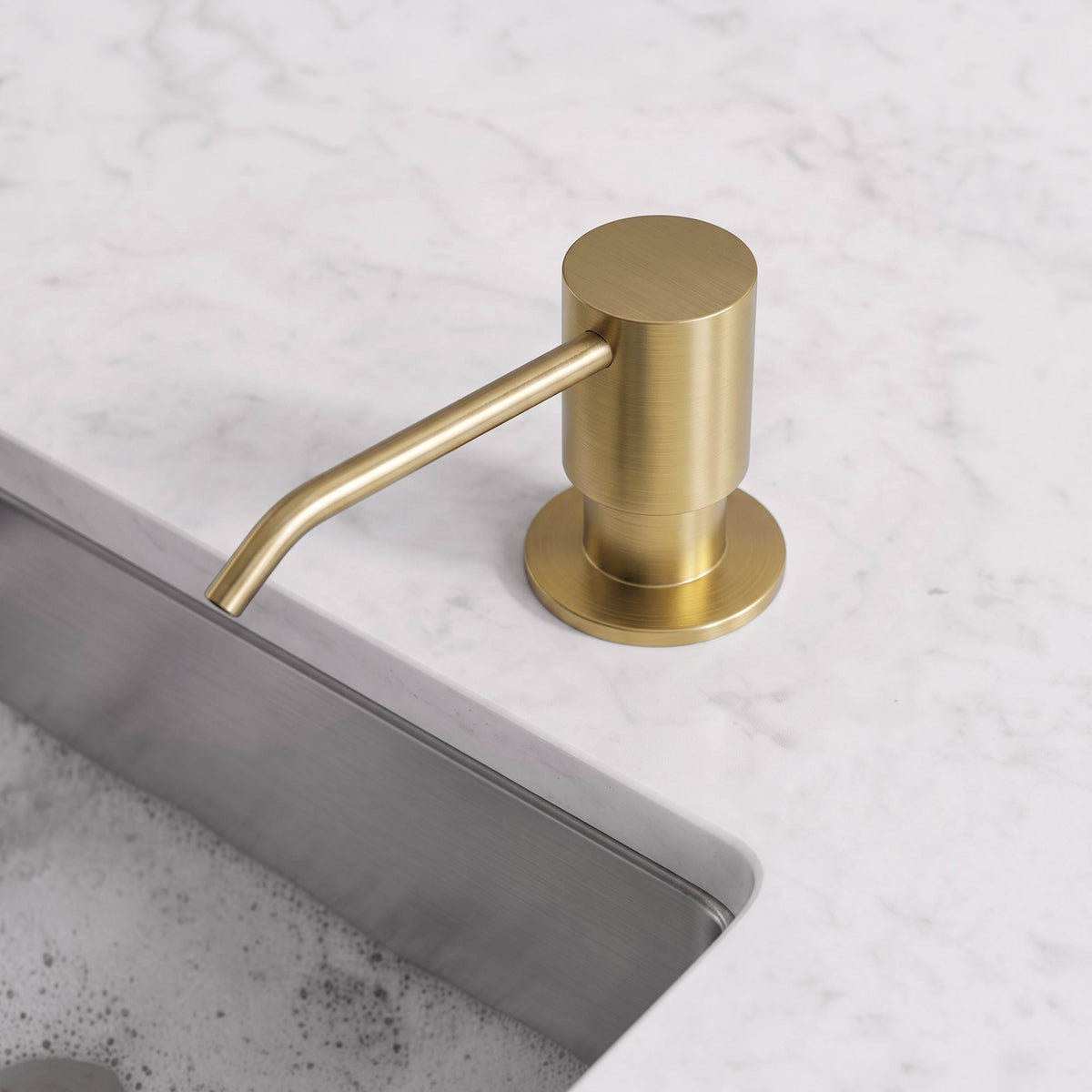

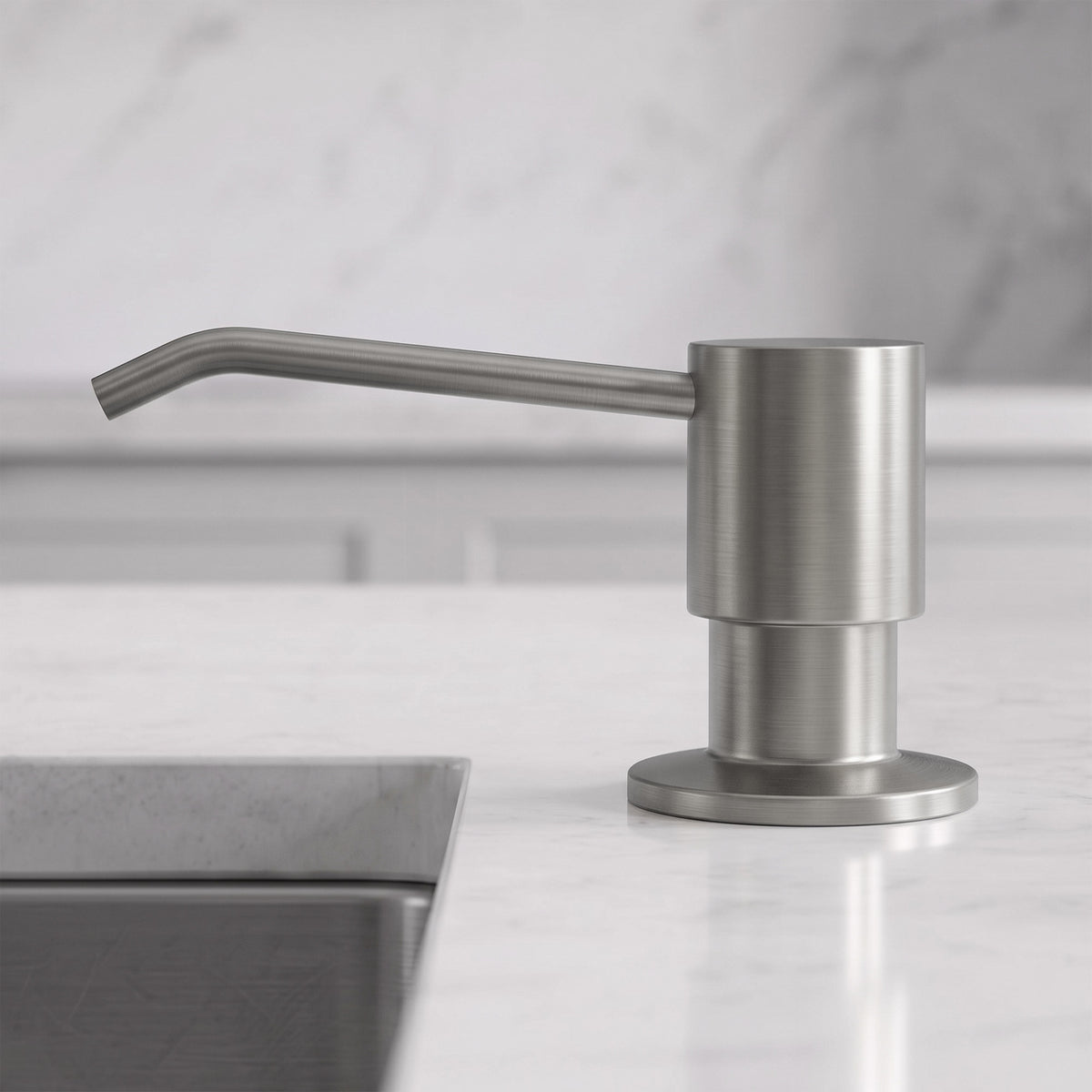

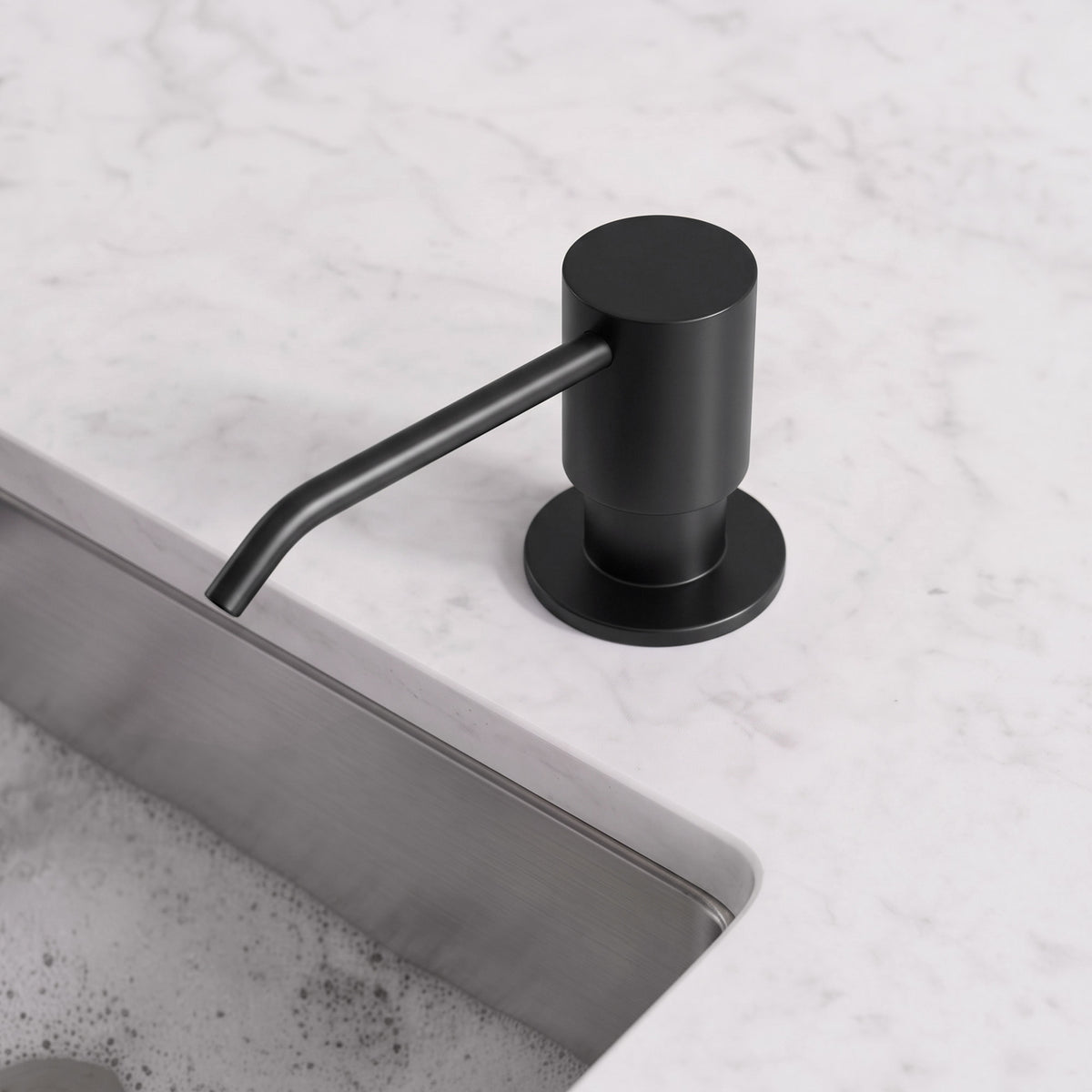

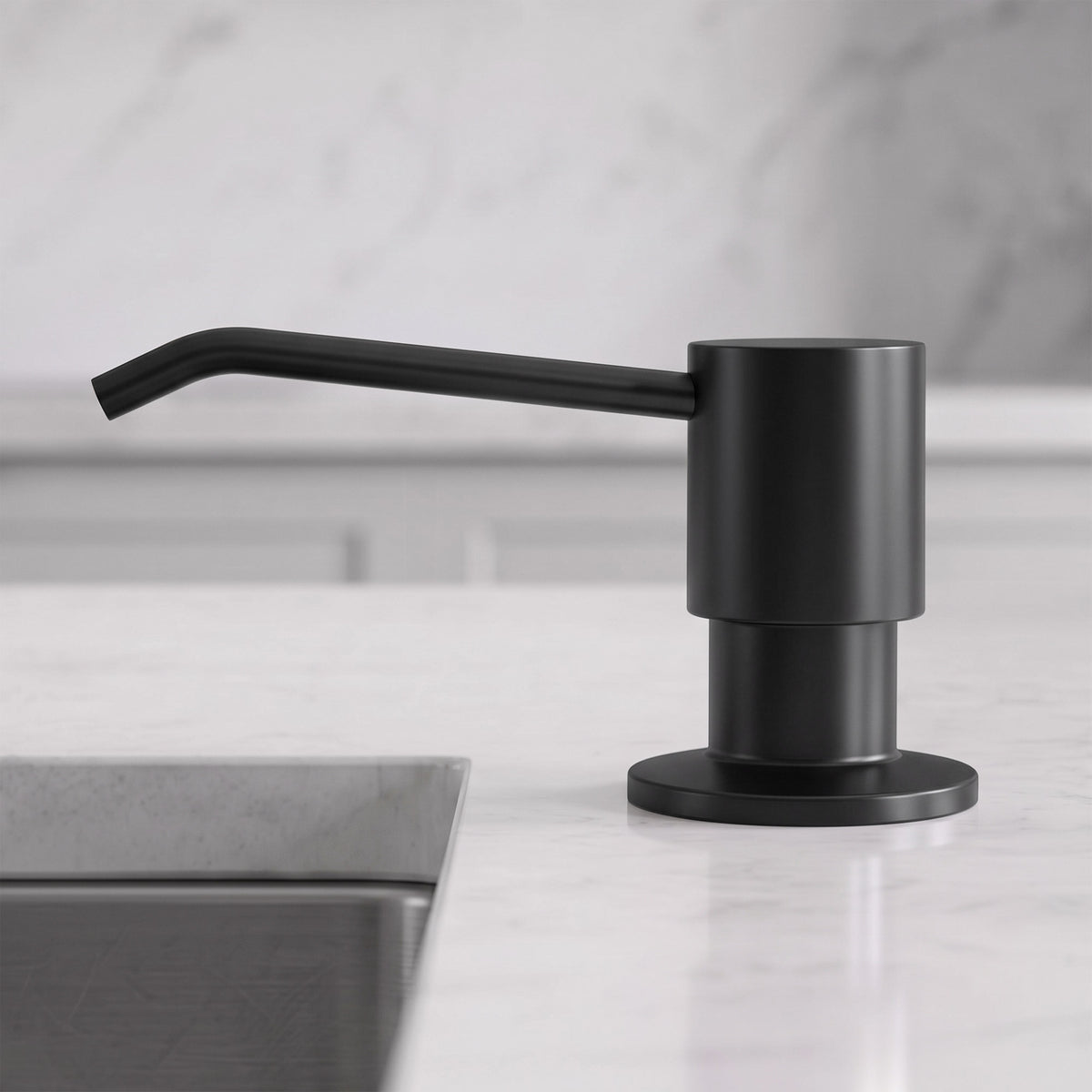

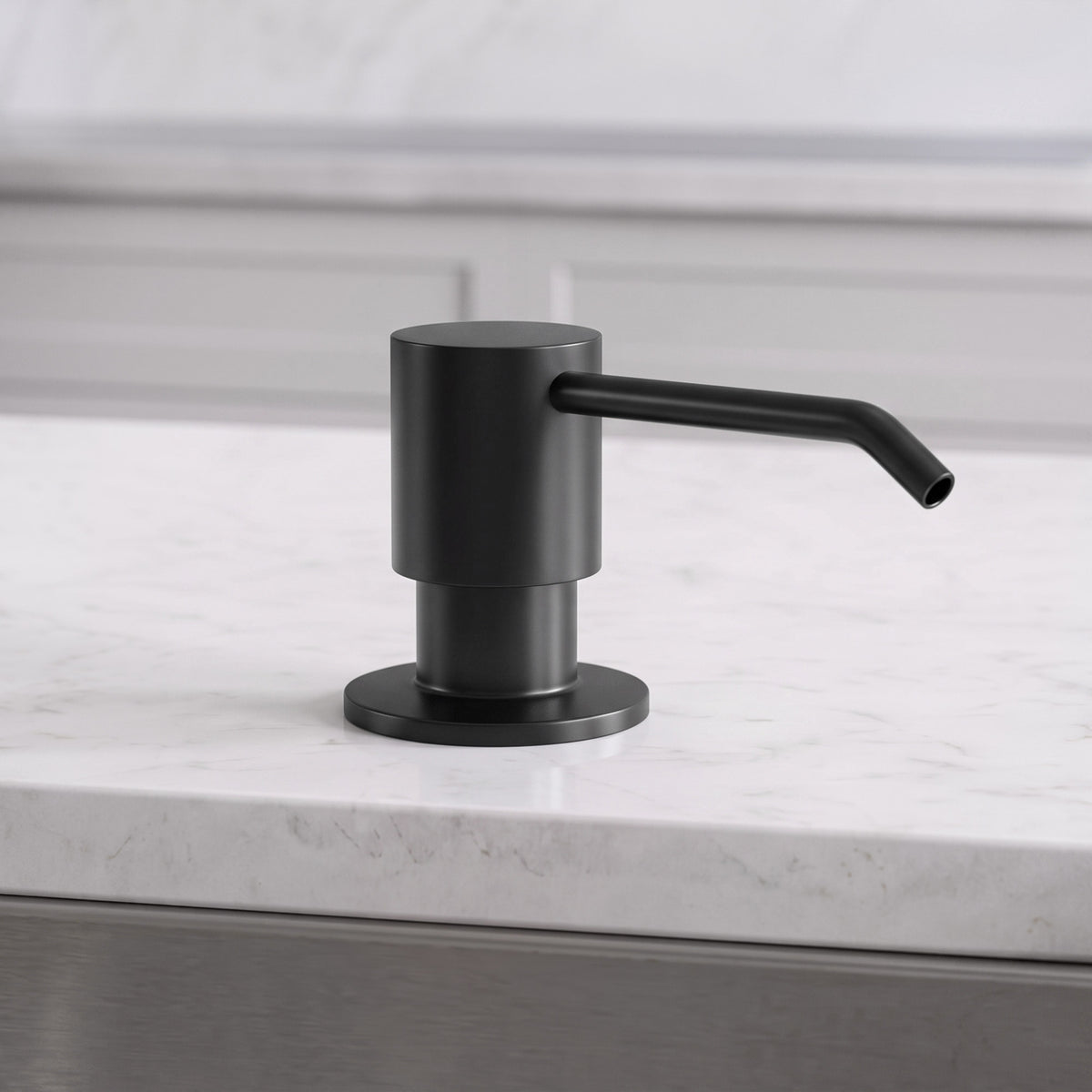

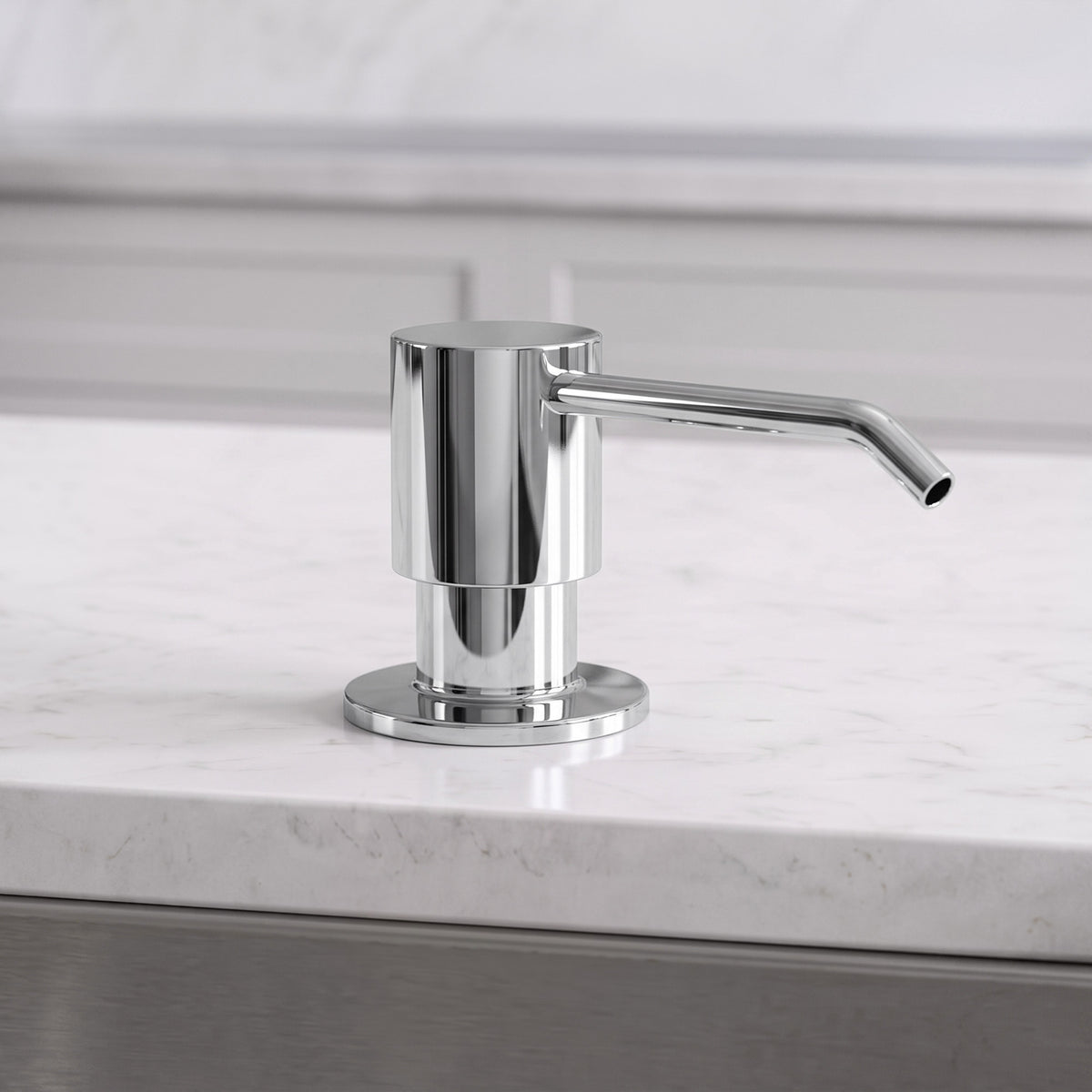

With the bottle stored below the counter, the visible part of the fixture stays limited to a slim pump head and a short spout, which helps keep the sink area uncluttered. The rotating spout can be angled over the basin or off to one side, so soap can be reached from different positions at the sink during hand washing and food preparation.

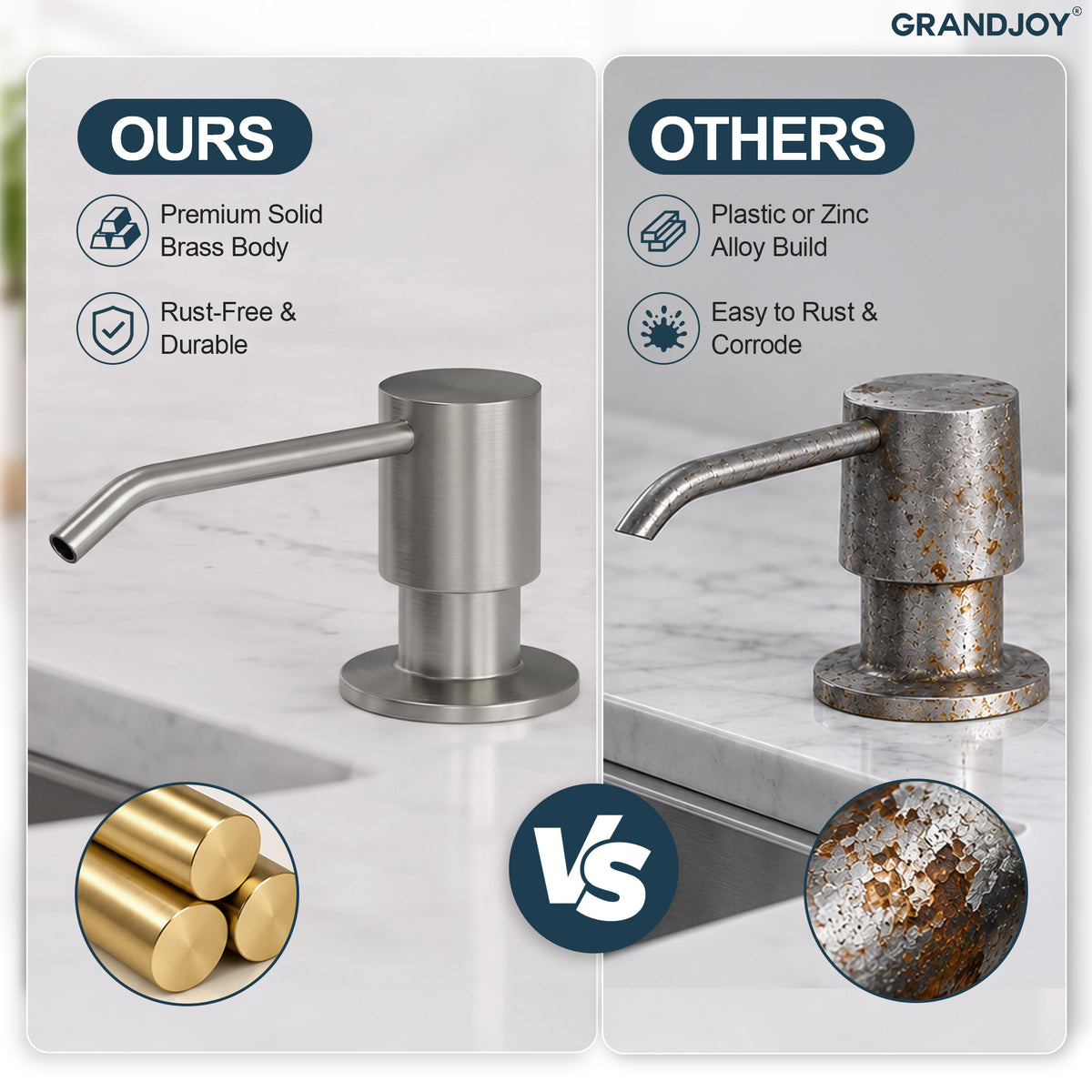

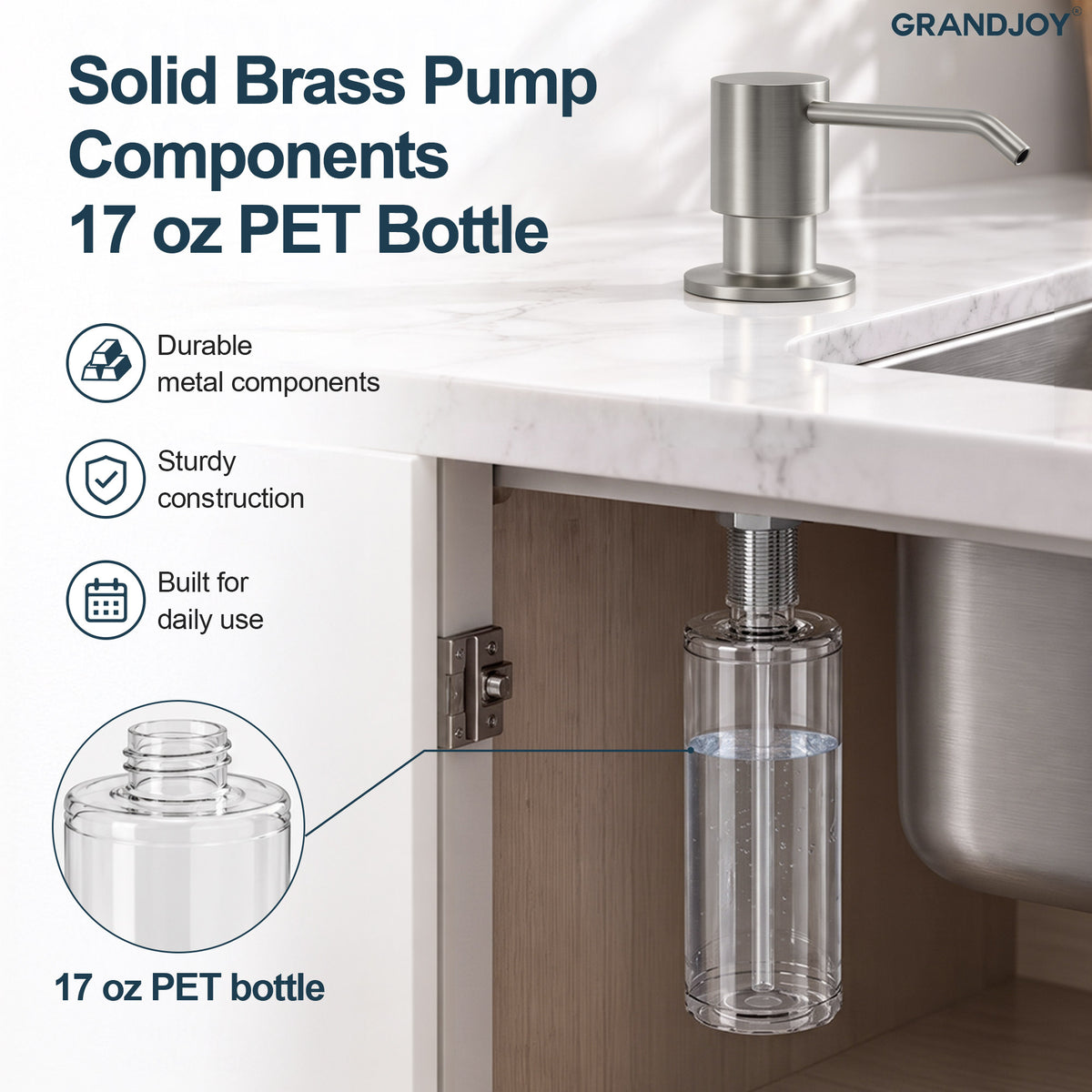

The pump head, pump body, threaded shank, and mounting nut are brass, giving the assembly a solid base for repeated daily use. Installation passes through an existing countertop or sink opening, and the unit is secured from below with the supplied mounting parts. The bottle and suction tube sit under the counter and connect to the pump through that opening.

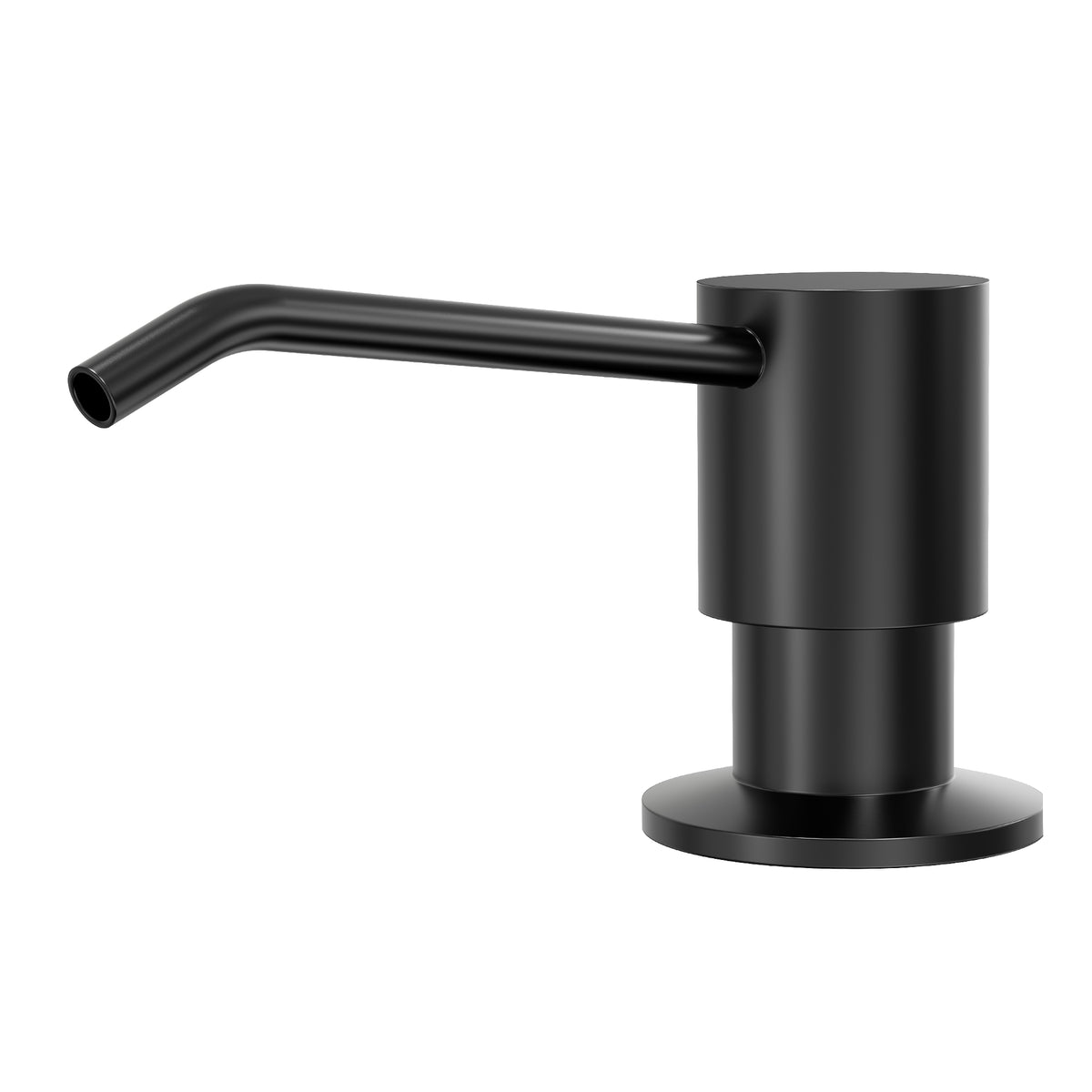

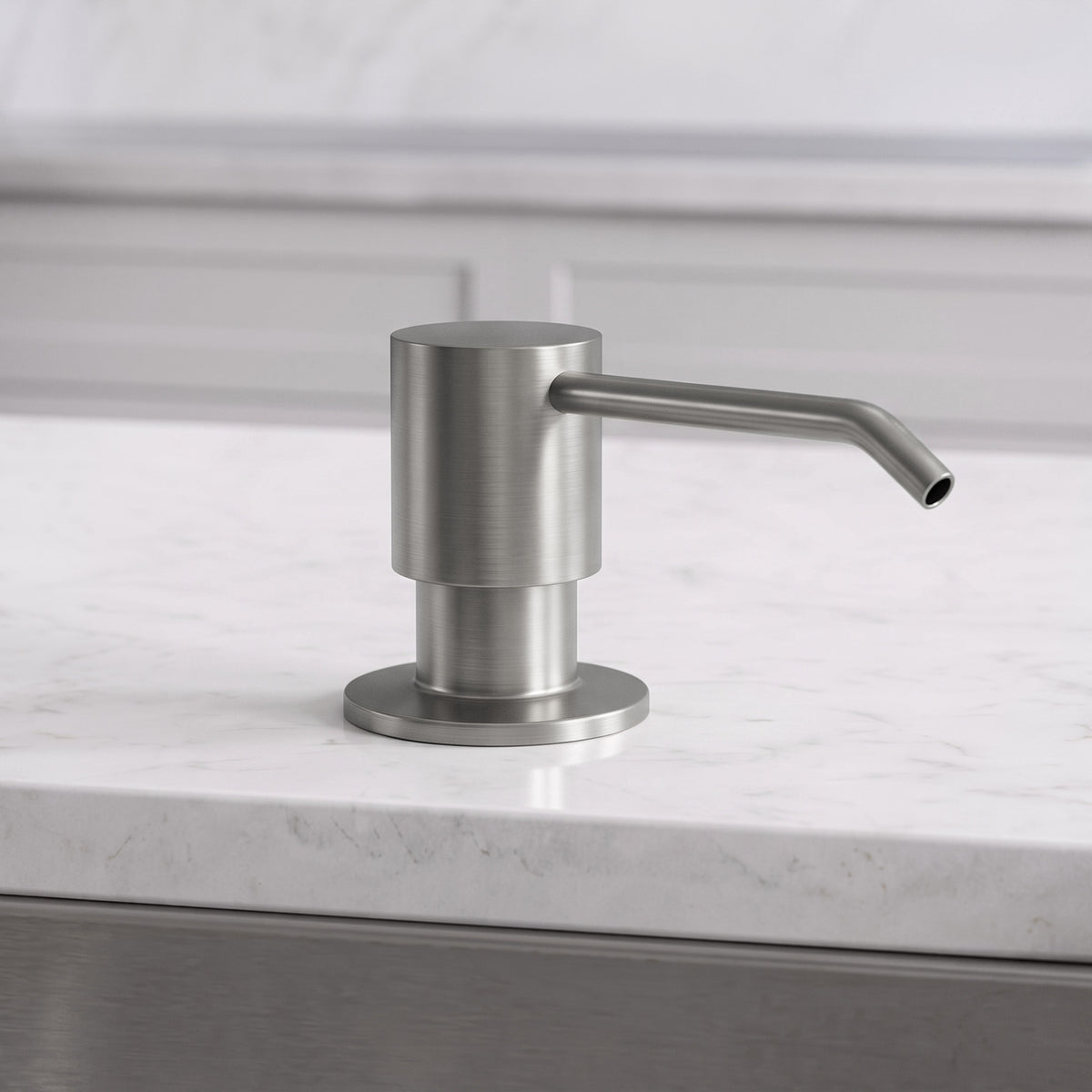

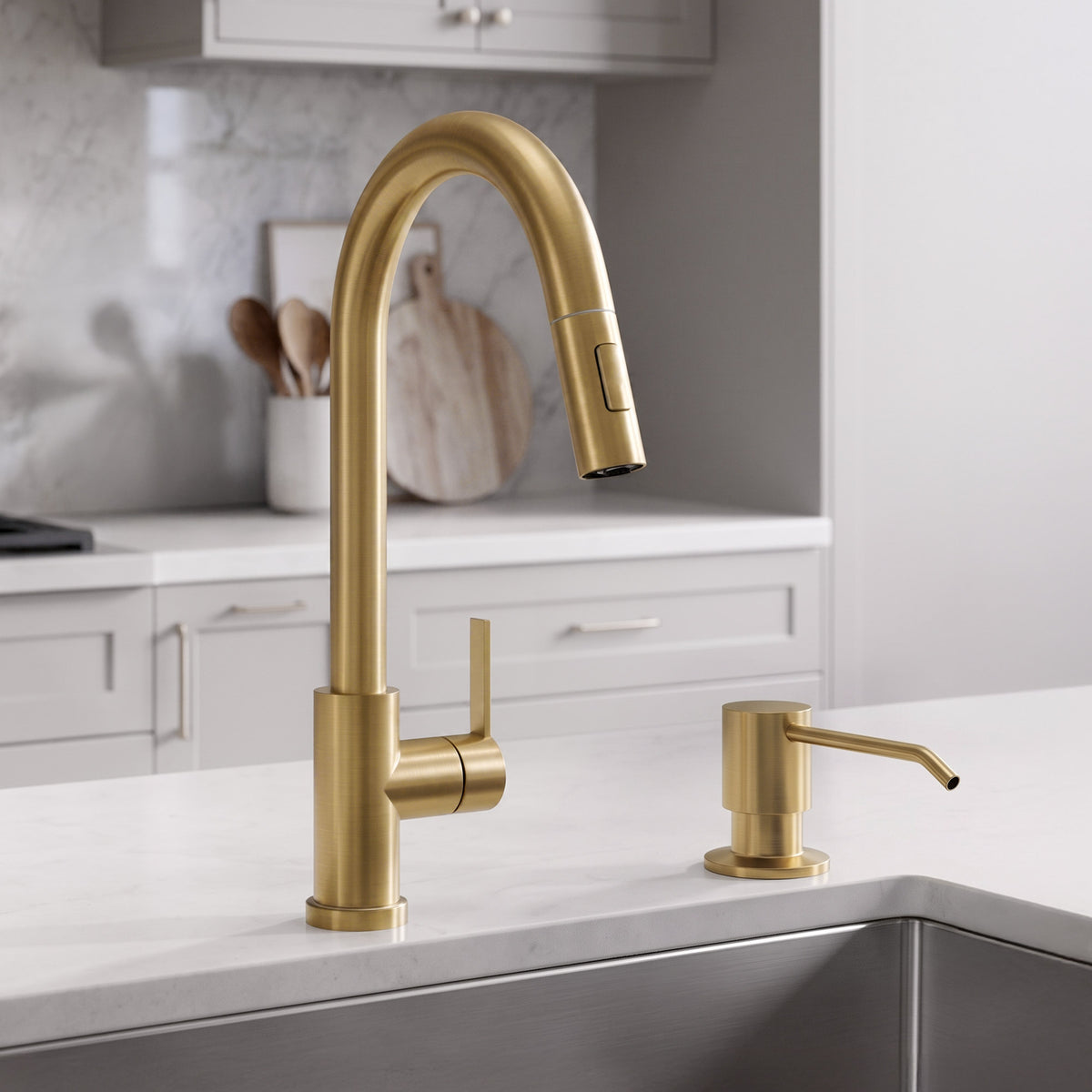

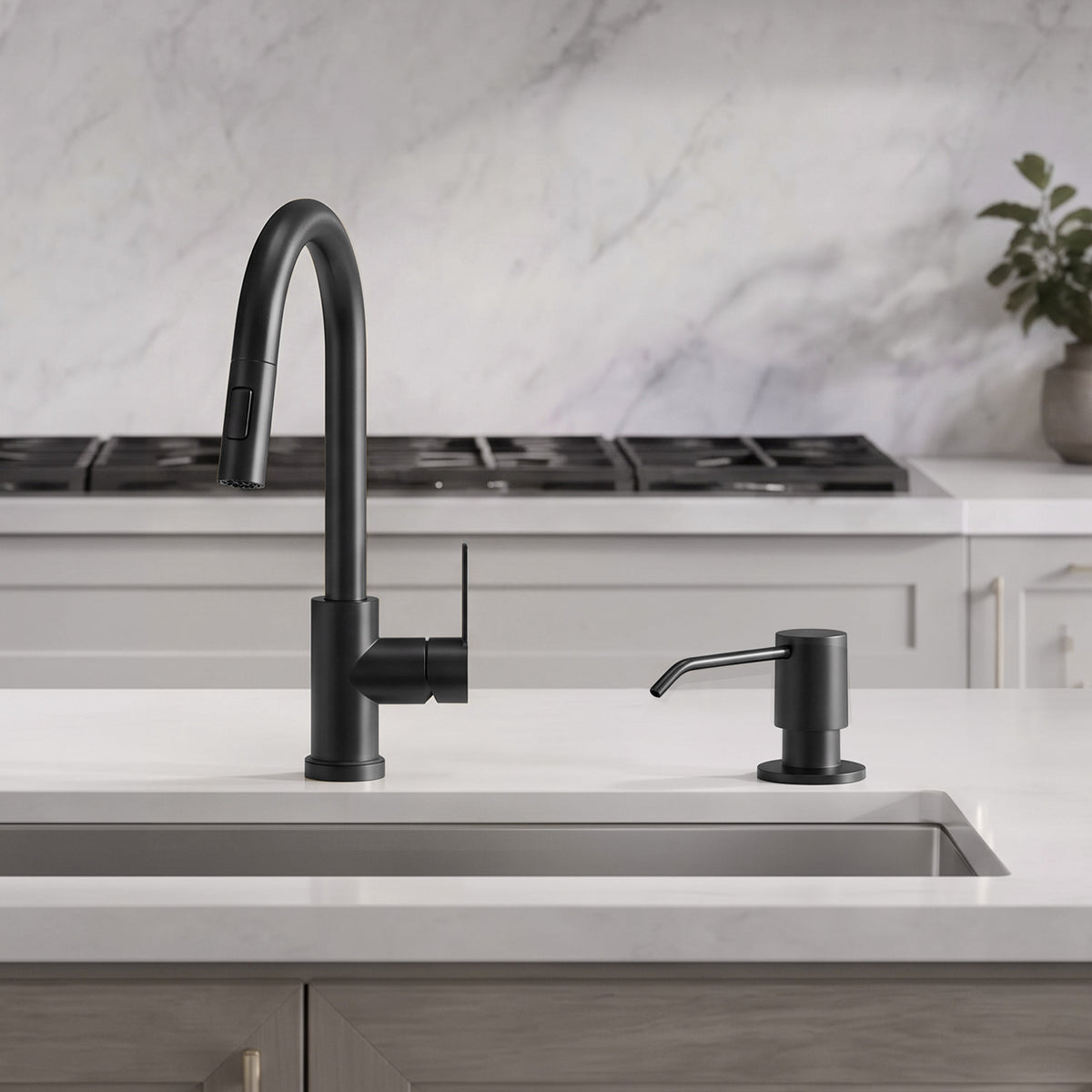

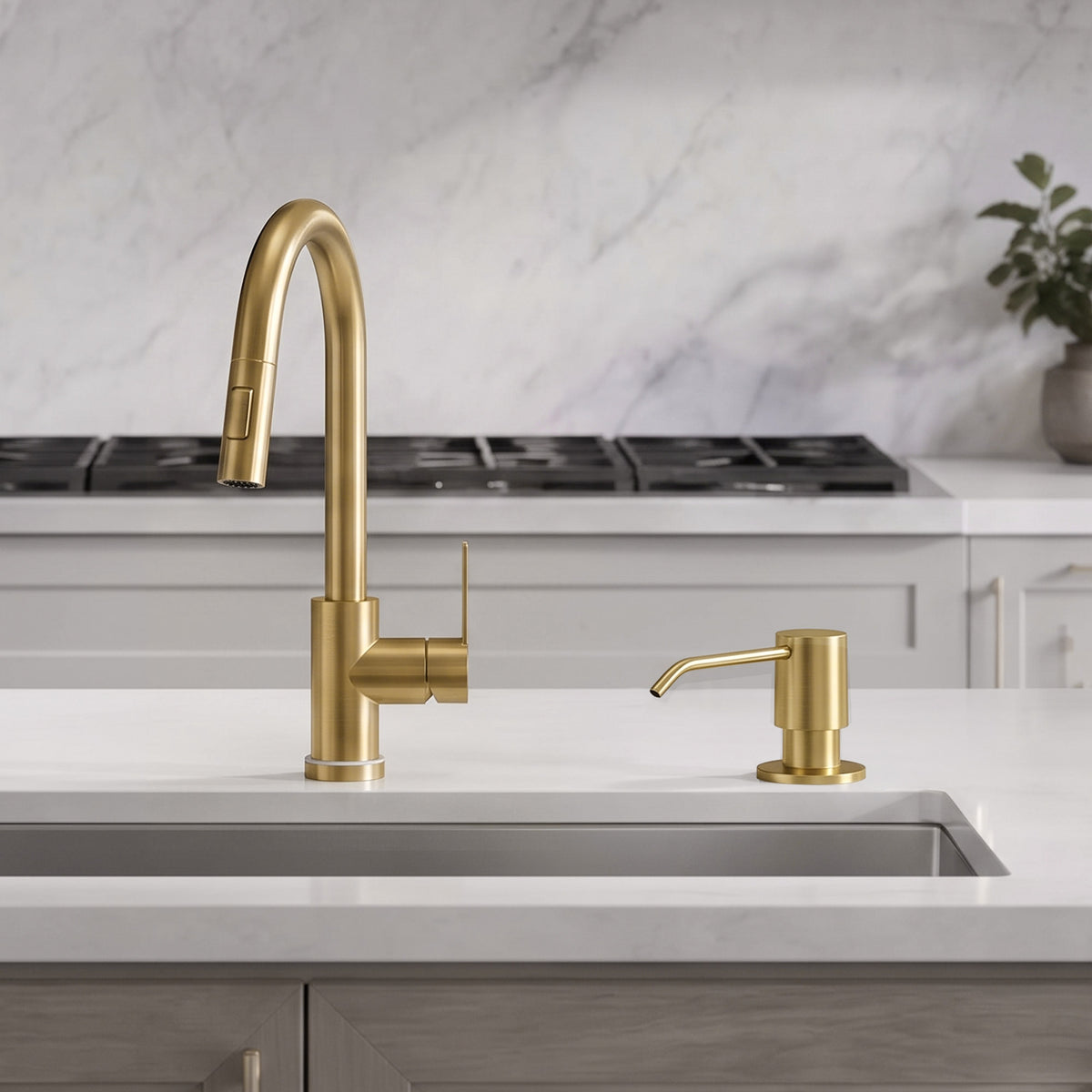

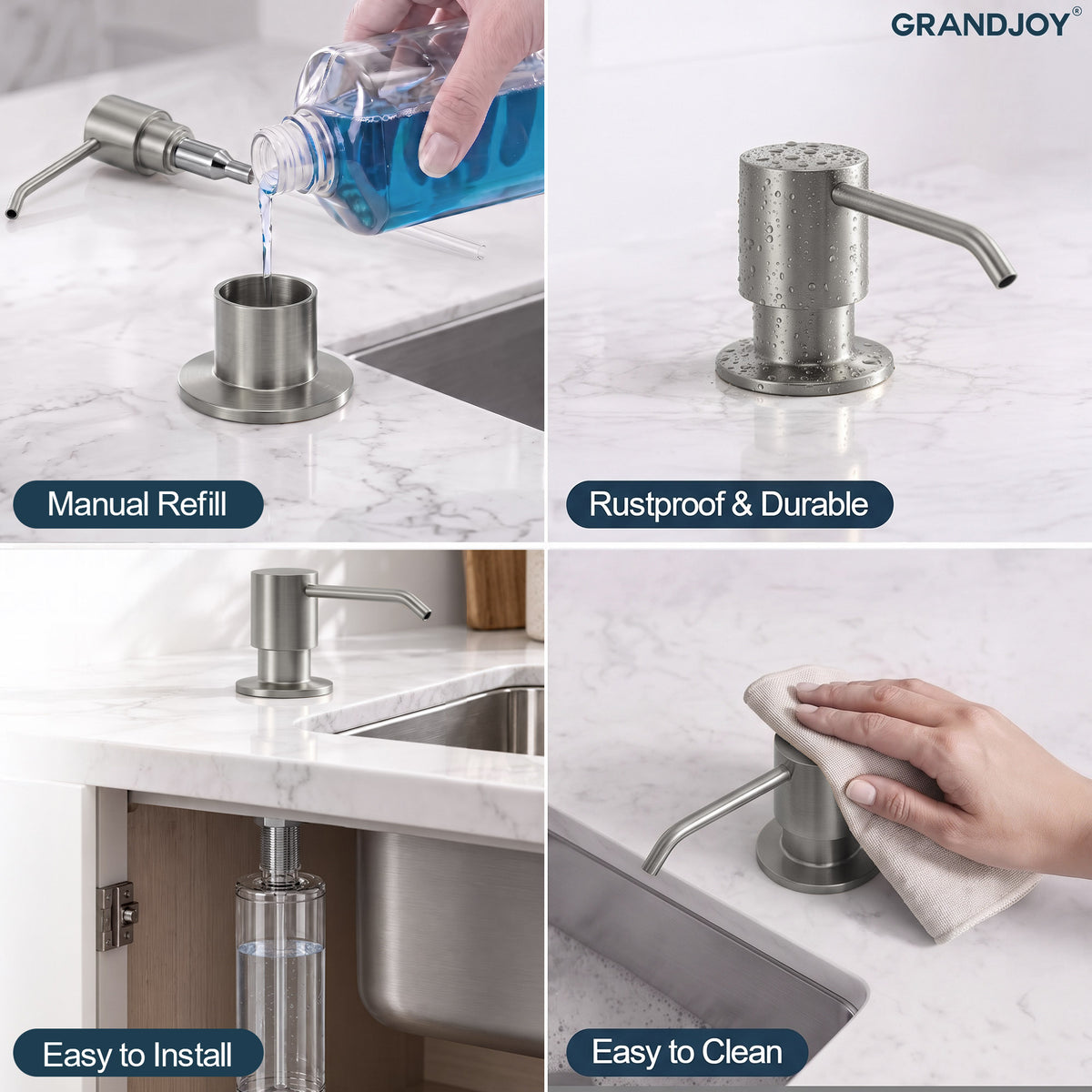

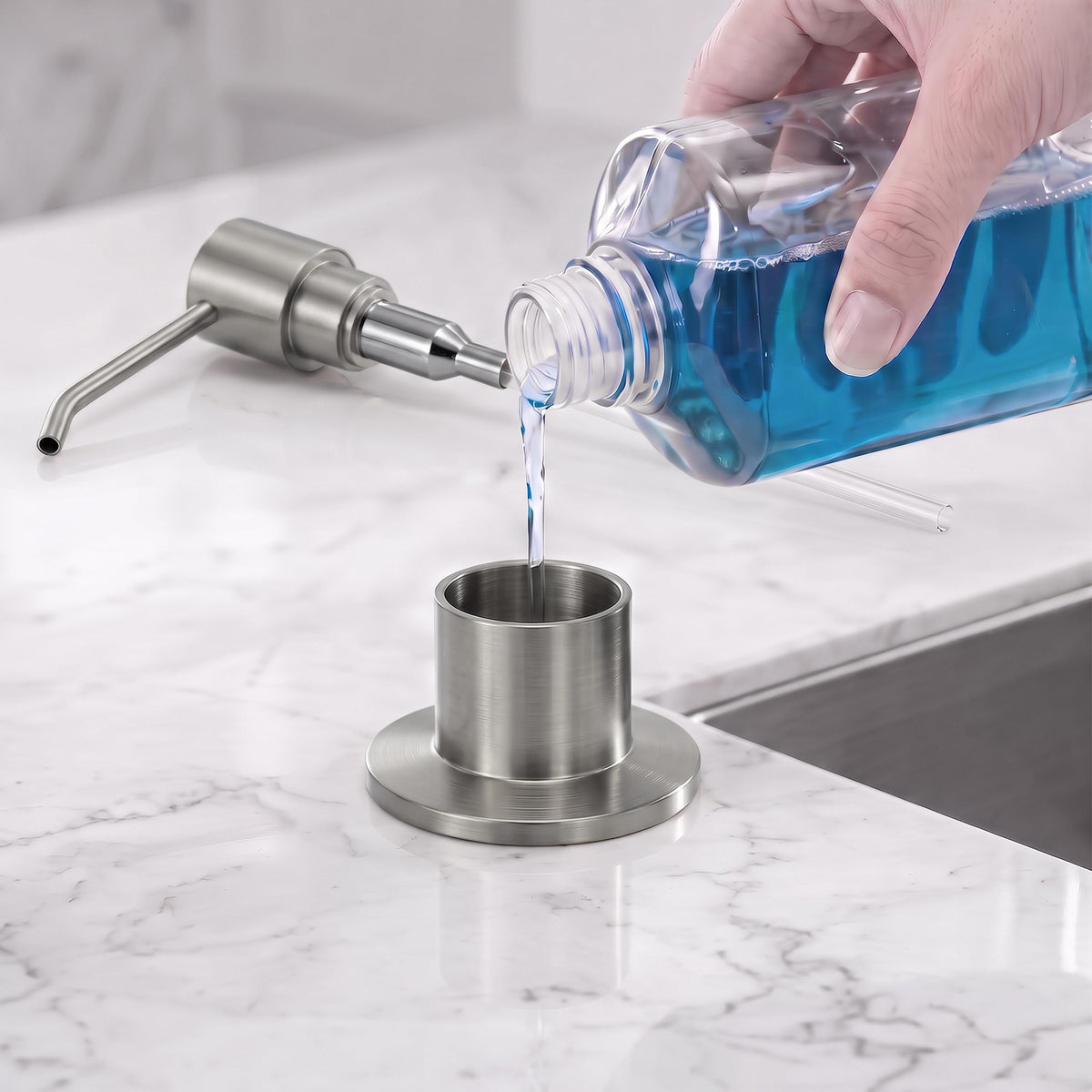

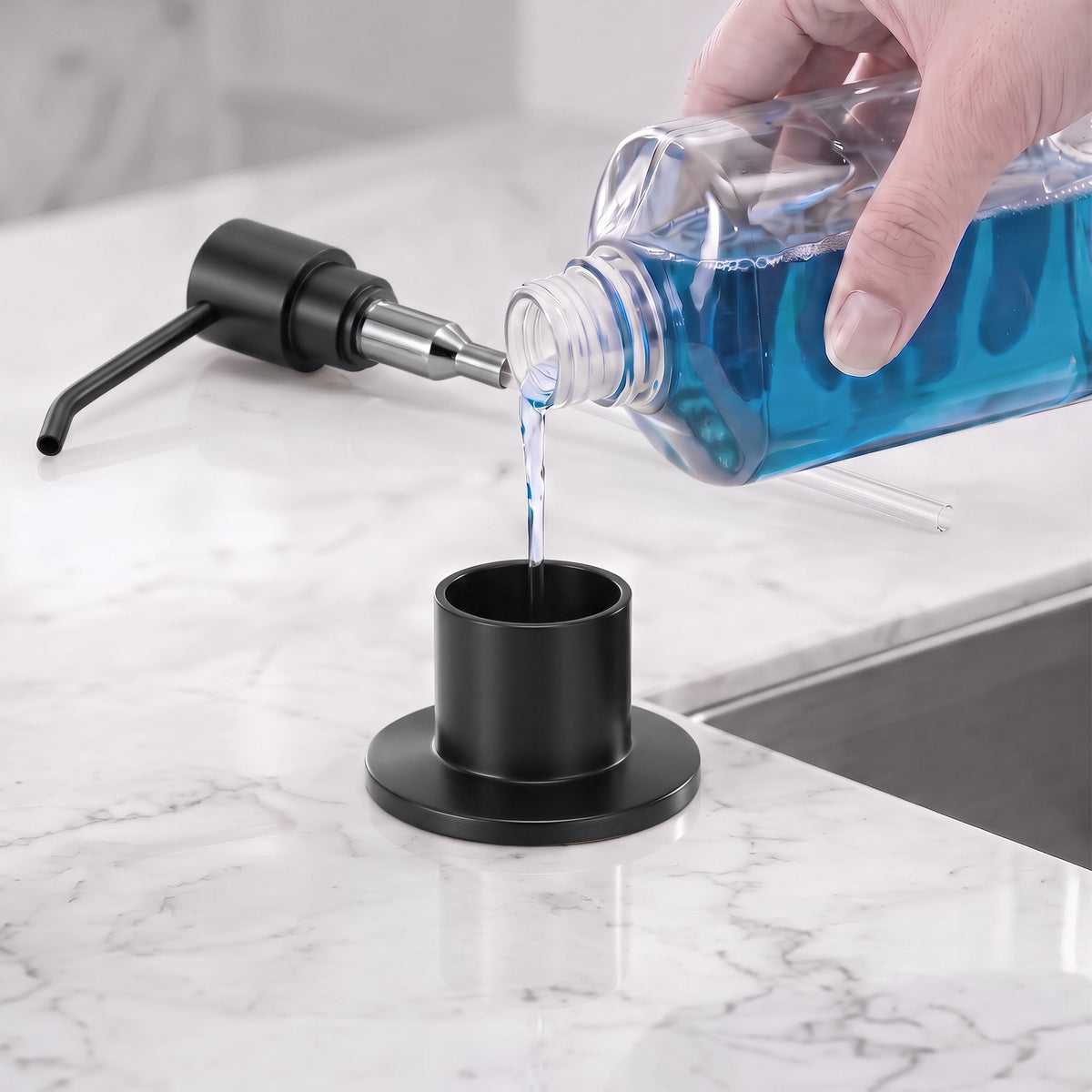

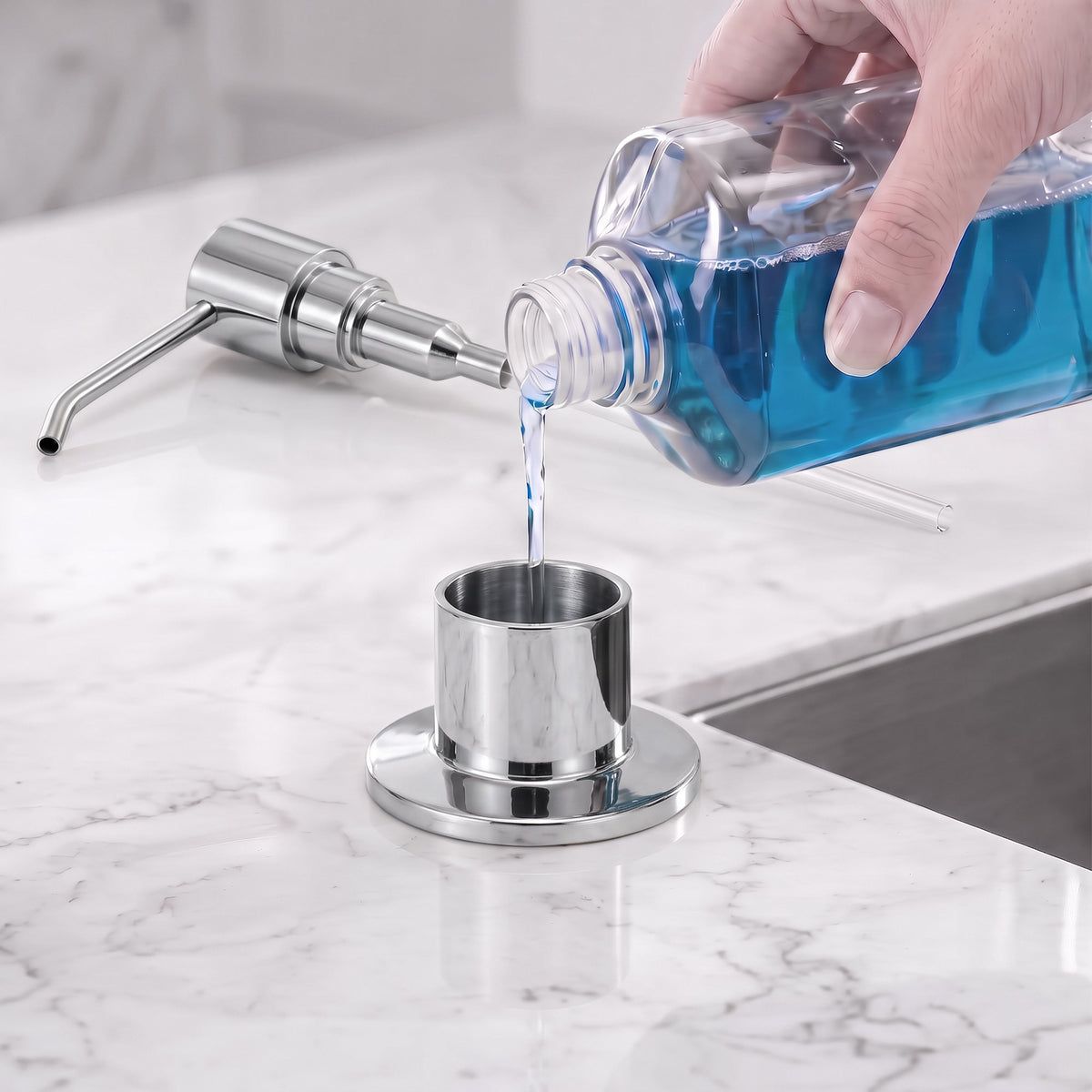

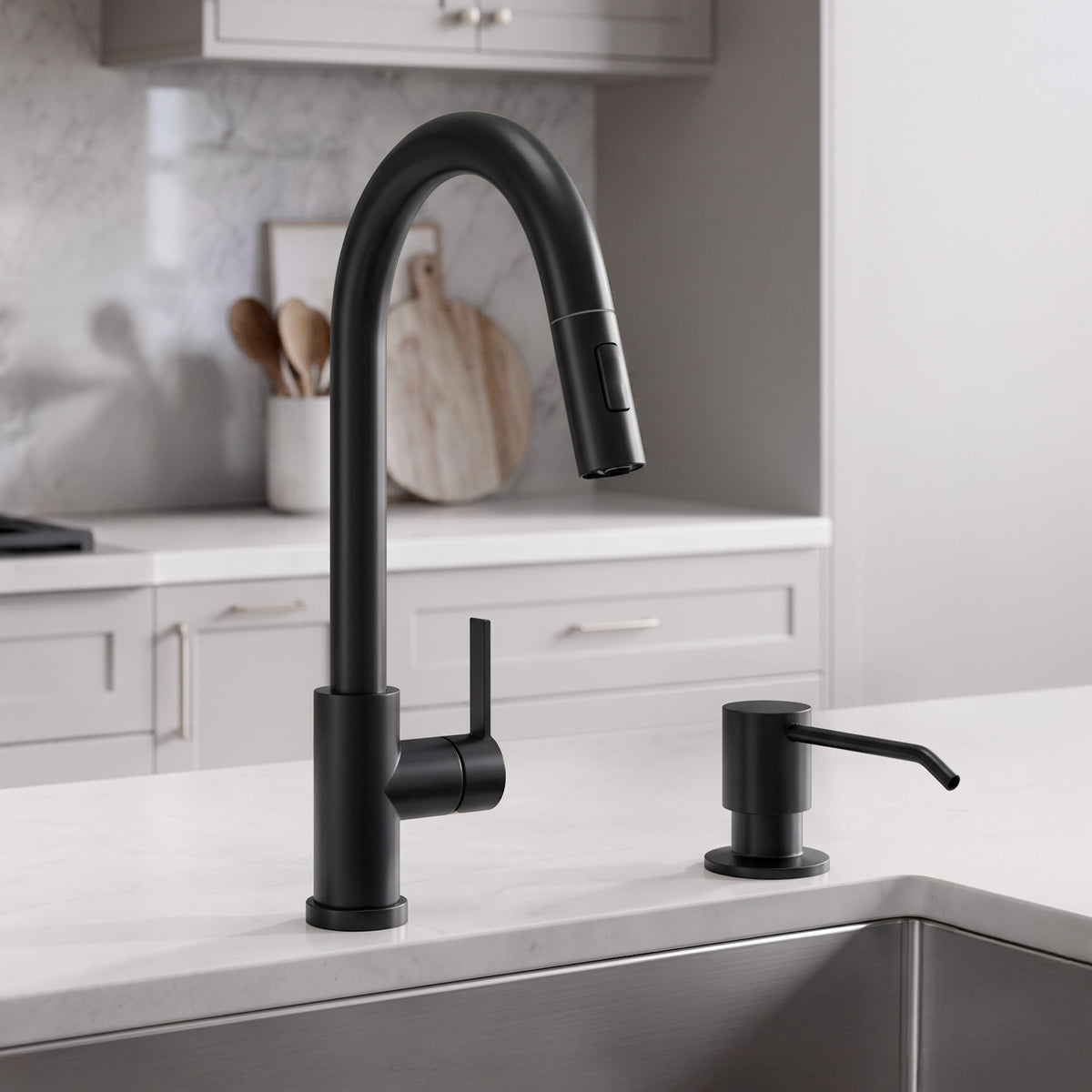

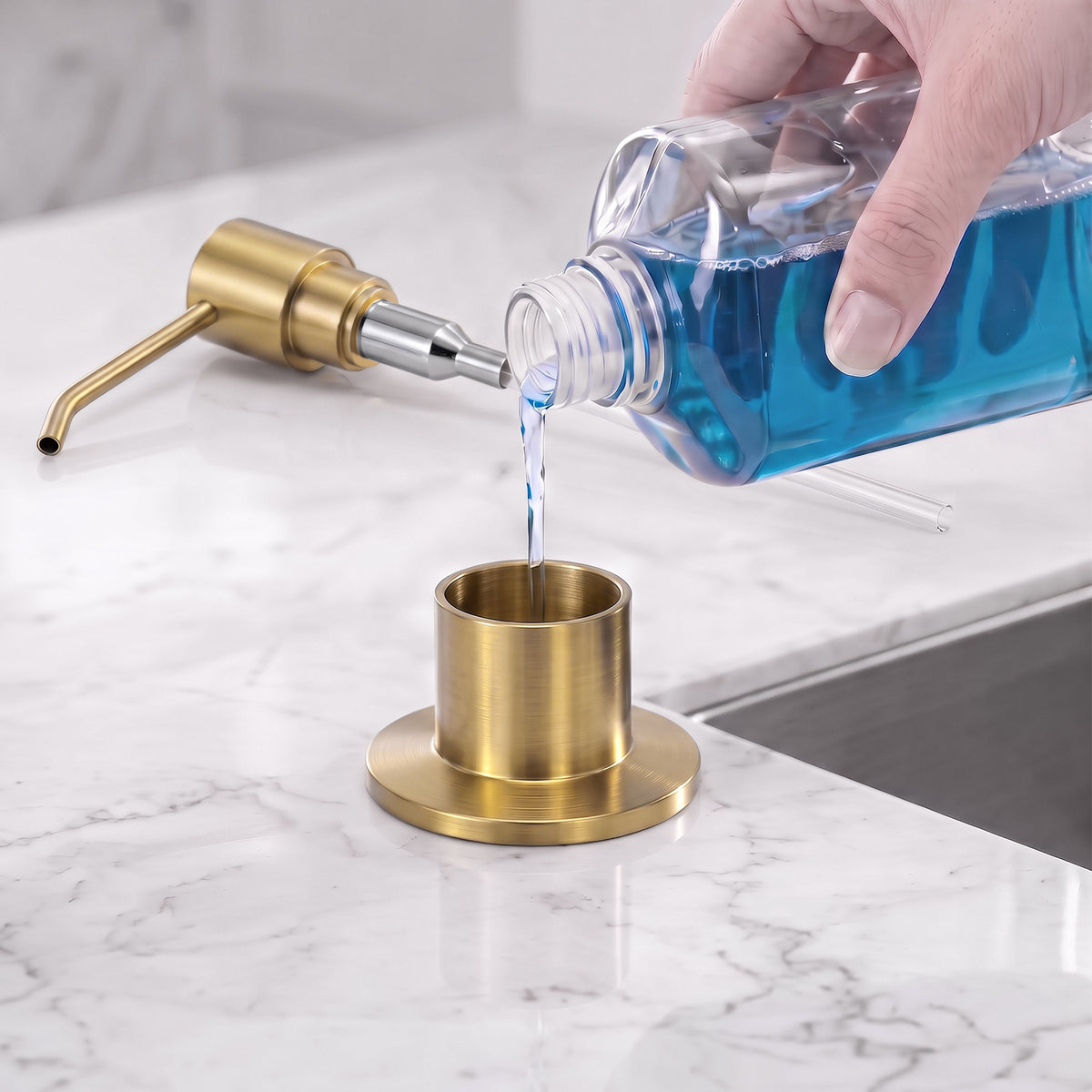

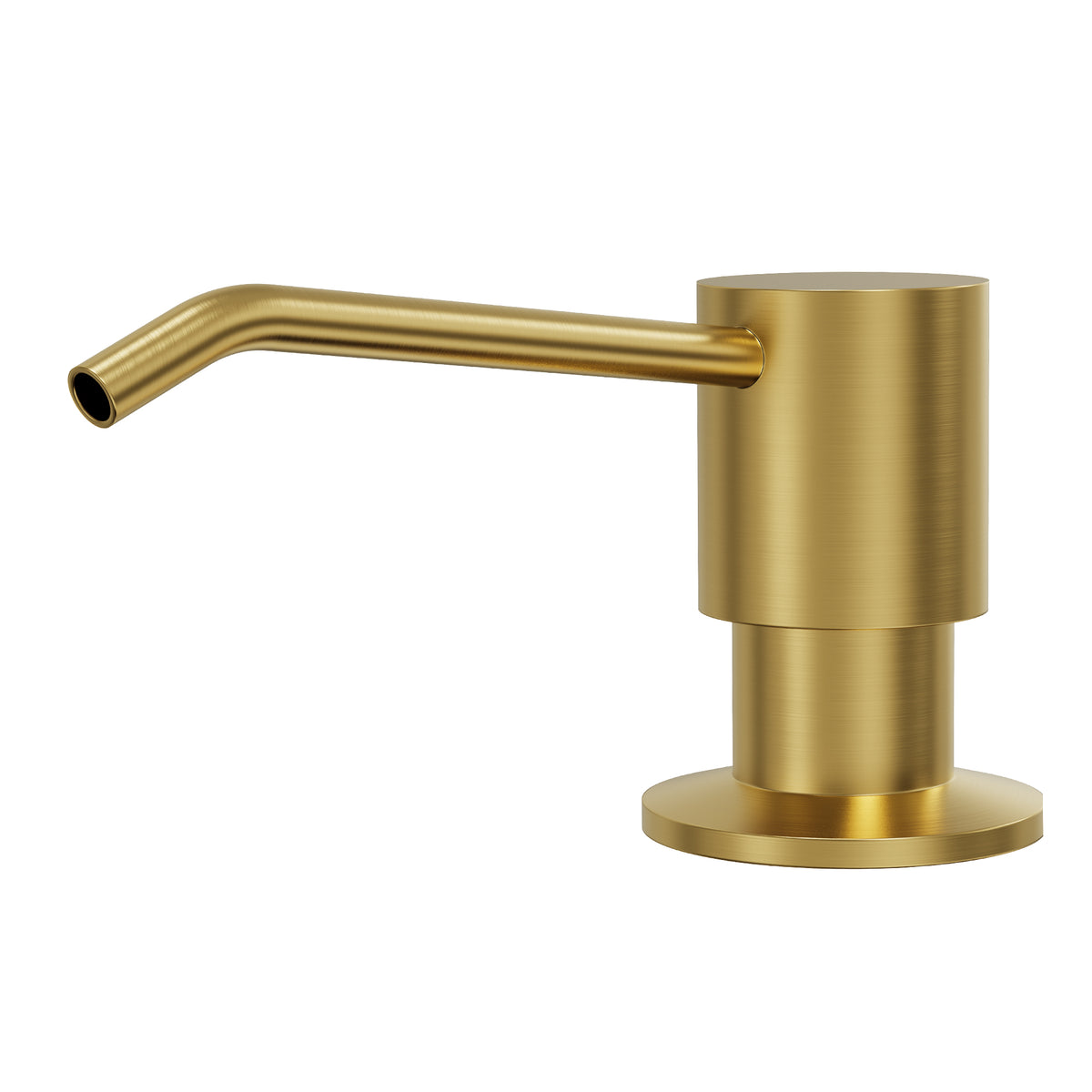

Refilling works from the top of the pump head, so soap can be added without going under the sink to unscrew the bottle. Only the pump and spout need routine attention above the counter, which keeps cleaning simple. Four finishes are available: Matte Black, Brushed Nickel, Chrome, and Brushed Gold, so the dispenser can be matched to the faucet and other sink hardware already in place.

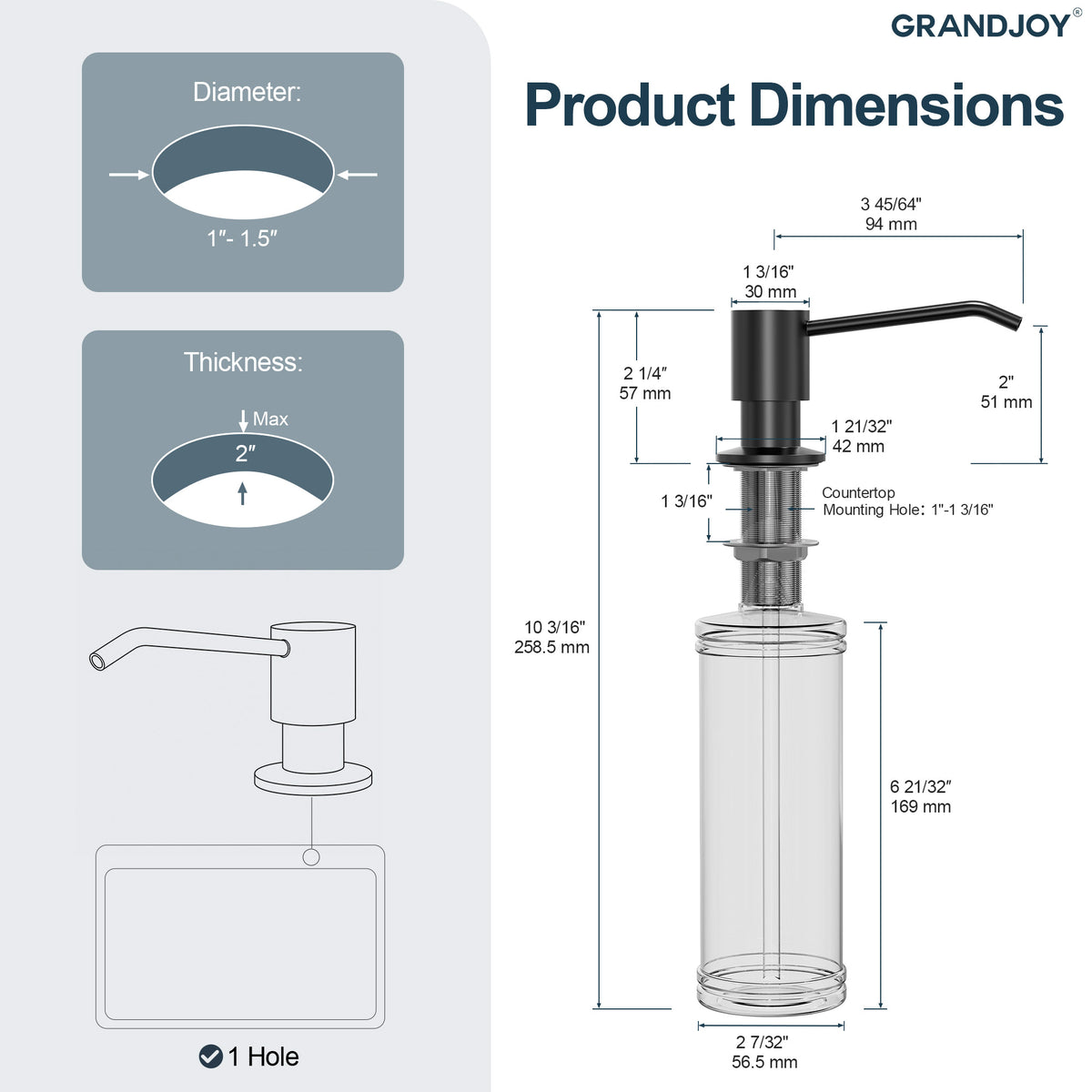

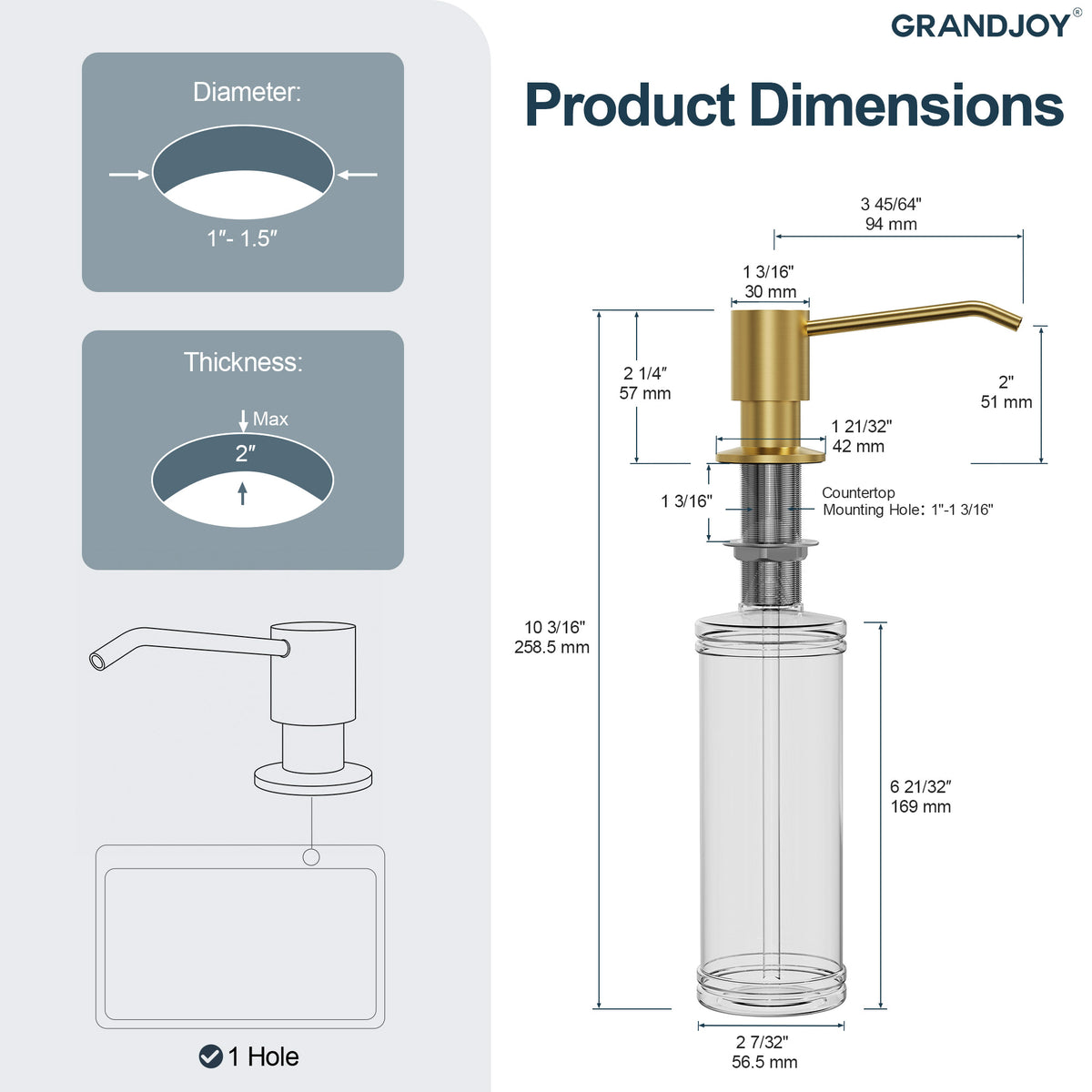

Dimensions
| Overall Height | 10.19“ |
| Overall Depth | 3.70” |
| Max Countertop Thickness | 2” |
Specifications
| SKU | GSO002 |
| Pump Head Material | Brass |
| Bottle Material | PET |
| Finish | Matte Black / Polished Chrome / Brushed Gold / Brushed Nickel |

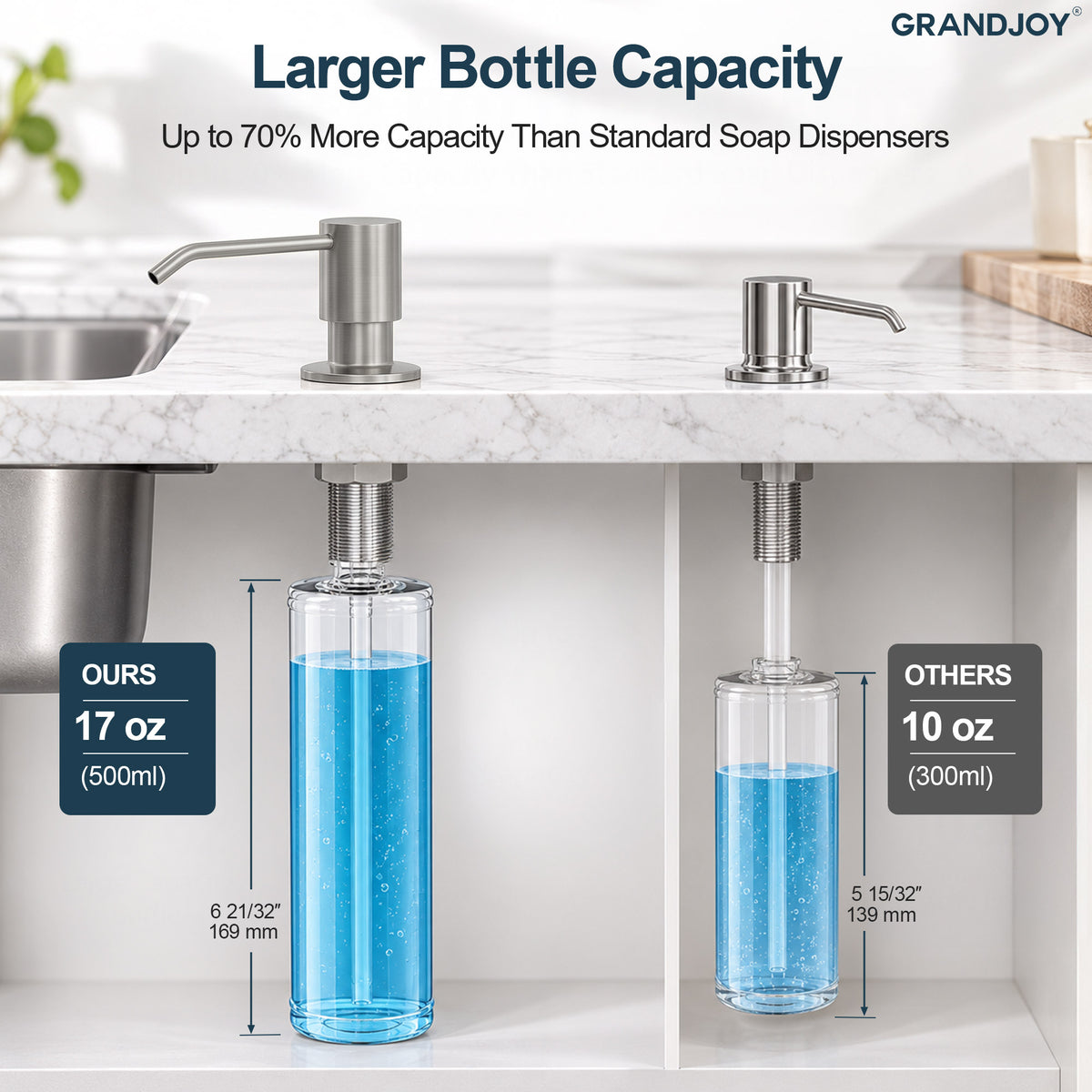

| Bottle Capacity | 500 mL |
| Installation Type | Deck Mount |
| Number Of Holes | 1 |

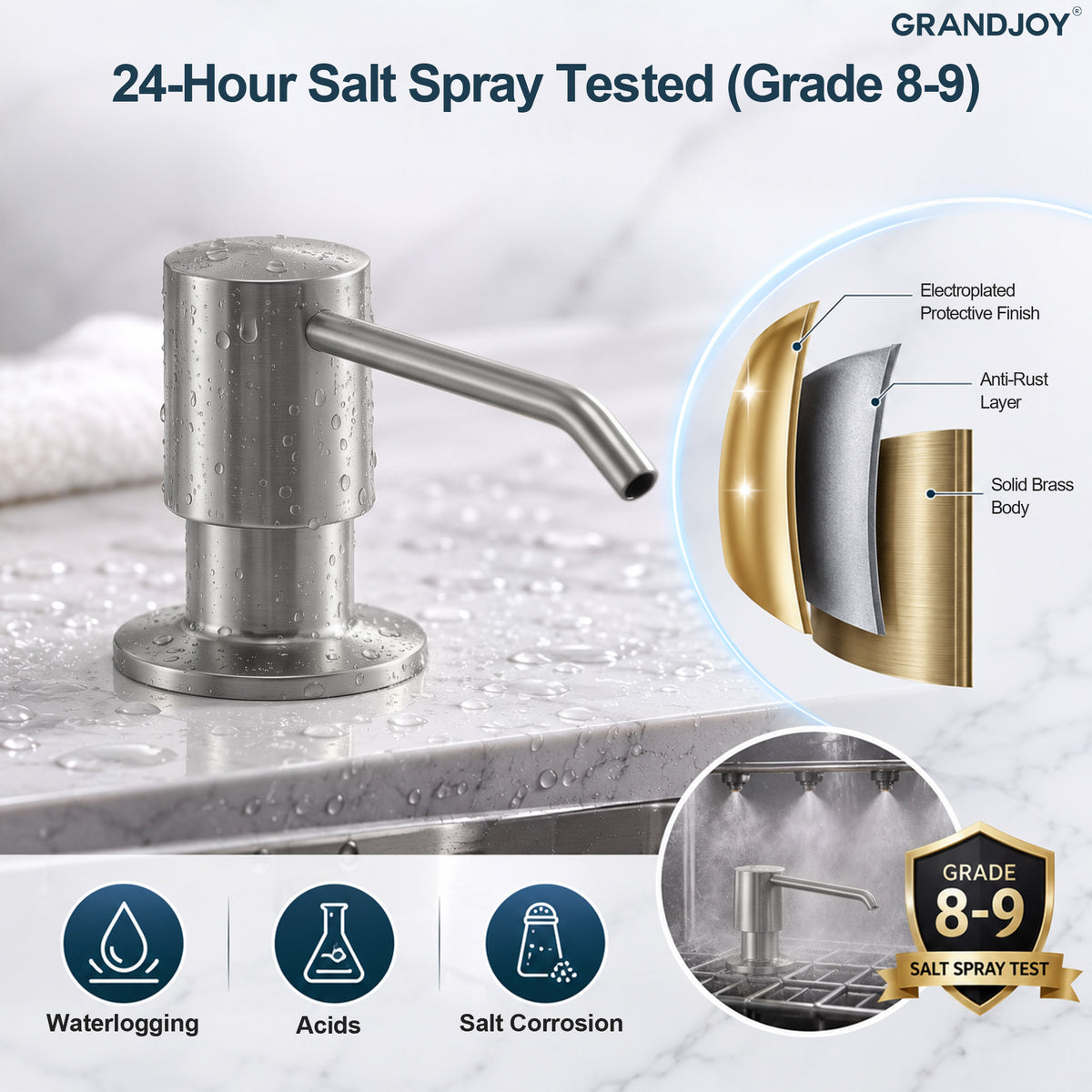

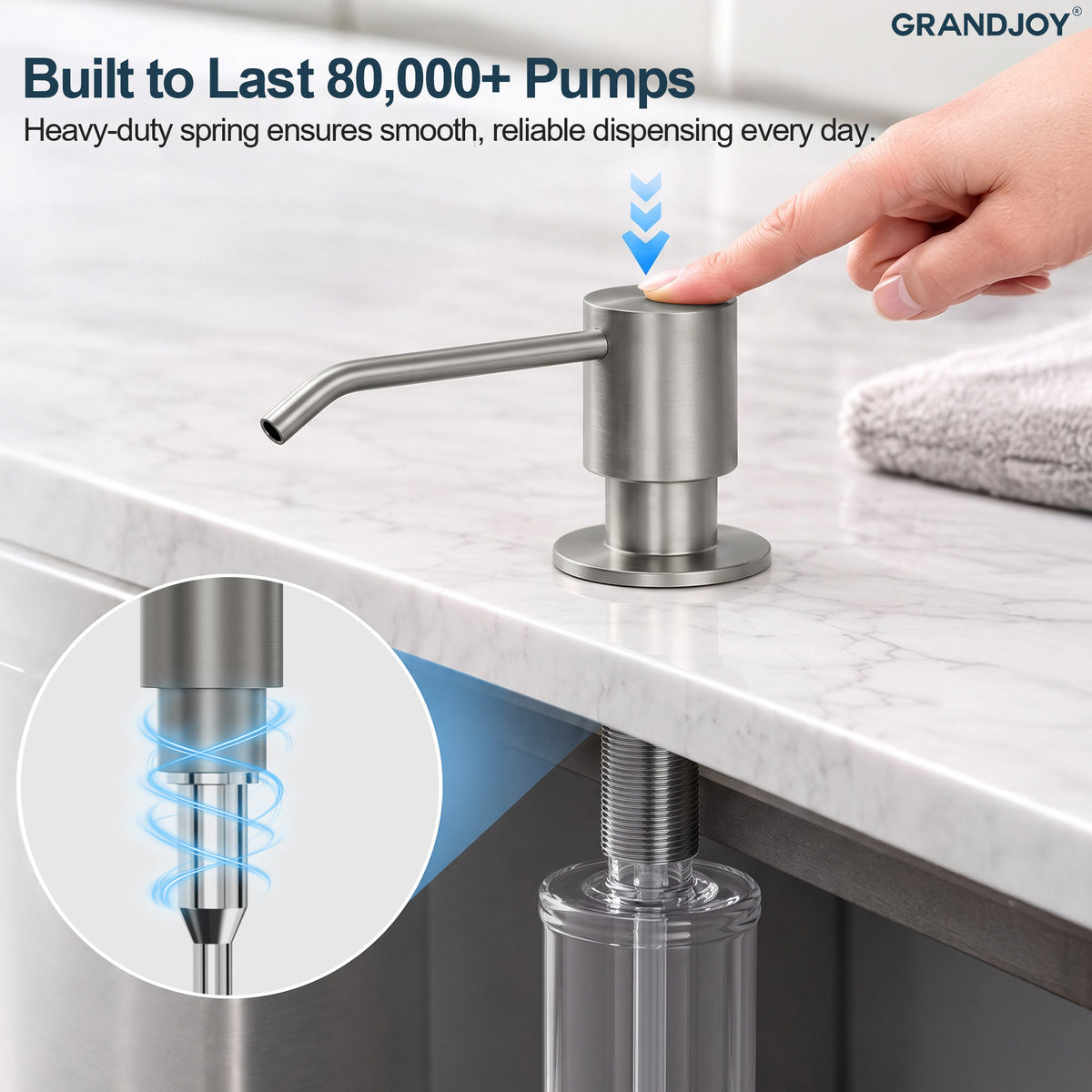

| Feature | Manual Pump, 360° Swivel Spout, Top-Fill Pump Head, 30,000–80,000 Cycle Service Life, 24-Hour Salt Spray Test Grade 8–9 |

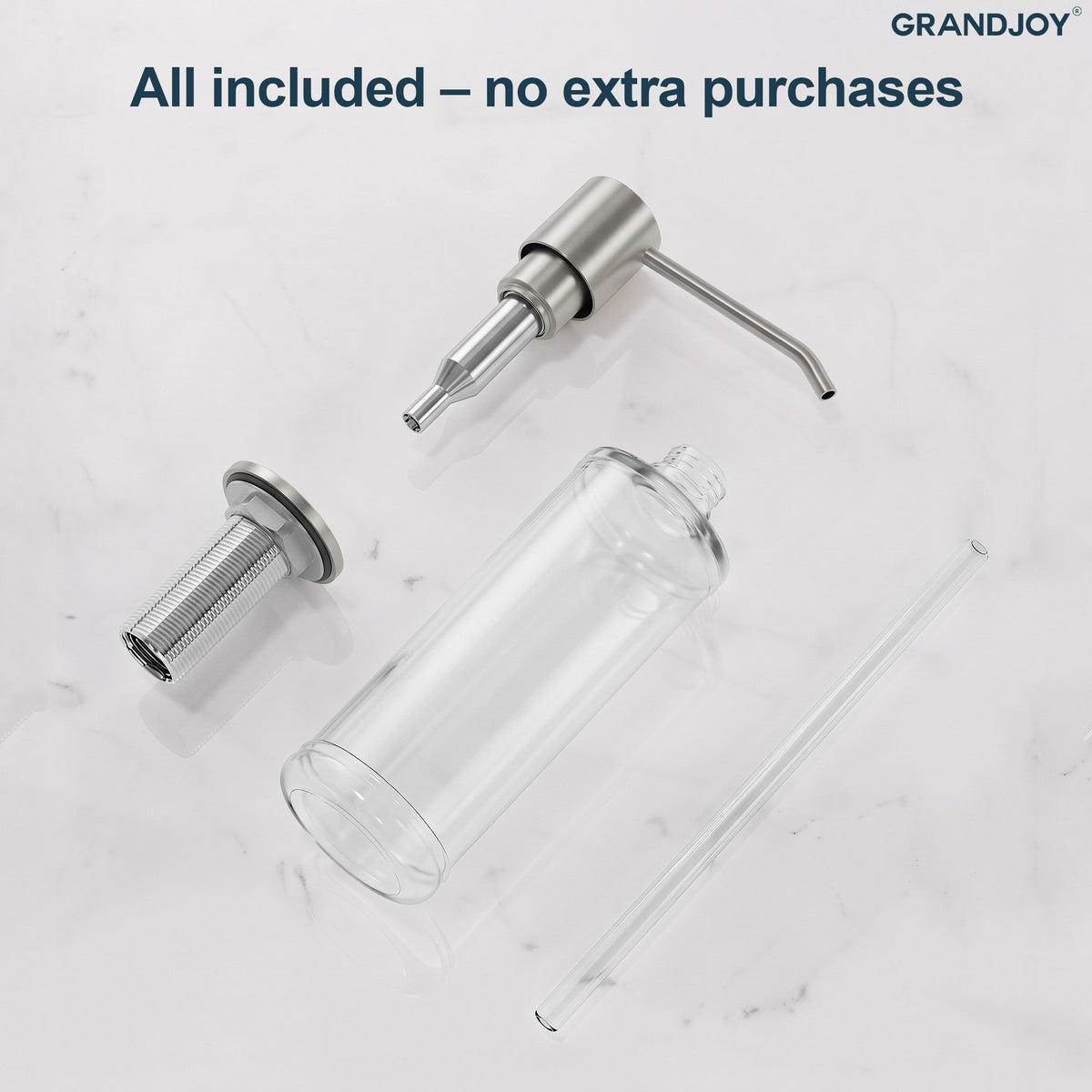

| Included Components | Pump Head Assembly, Body Assembly, Bottle, Suction Tube, Instruction Manual |
| Warranty | 5-Year Limited Warranty |
